SAFIX LPZ-A-QC-M12
RFID safety sensor, pigtail, low-coded


Betreff: SAFIX LPZ-A-QC-M12 RFID safety sensor, pigtail, low-coded


General data

Item number
402004-SP
Type designation
SAFIX LPZ-A-QC-M12
Functional type
RFID Safety Sensor
Service life TM (EN ISO 13849-1)
20 Years
Coding levels
Low (EN ISO 14119)

Safety data

Approvals
TÜV_SÜD, CE, UL
Performance Level (EN ISO 13849)
PLe
Category (EN ISO 13849-1:2015)
Kat. 4
MTTFd (ISO 13849-1) years
771 years
Diagnostic coverage DC
High
SIL (acc. IEC 62061)
SIL3
PFH (1/h) (IEC62061)
1.0 E-09
PFD (IEC62061)
8.7 E-05
Proof Test Interval T1 (IEC62061)
20 years

Environmental conditions

Protection class
IP67
Max. operating temperature
-20° ... +55 °C
Max. storage temperature
-25° ... +80 °C

Electrical data

Design / Connections
Pigtail 250 mm cable, M12 8-pin male connector
Rated operating voltage Ue
24 V DC -15% +10% SELV/PEVL V
Power consumption
0,7 W
Outputs Rated voltage
24 V DC
Outputs Max. Current
0,2 A
Outputs Min. current
1 mA
Outputs Type
OSSD, PNP
Inputs rated voltage
24 V DC
Inputs Rated current
2 mA
Auxiliary signaling output Rated voltage
24 V DC
Auxiliary signaling output Max. Current
0,2 A
Signaling output Type
PNP
Response time safety door open
60 ms max.
Switch-off response time Inputs
20 ms max.
Dielectric strength
250 V .ac
Insulation resistance
100 Mohms
pin assignment with SSP accessories cable
WH
Safety output 1
BN
+24 V DC
GN
0 V DC
YE
Safety input 2
GY
Not used
PK
Safety output 2
BU
Safety input 1
RD
Auxiliary signal output (+24 V DC)

Mechanical data

Dimensions
Width
26 mm
Length
91 mm
Height
16 mm
Housing material
Polyester
Assured switching distance ON S(ao)
8 mm
Assured switching distance OFF S(ar)
20 mm
Typical switching distance S(n)
12 mm
Recommended adjustment gap
5 mm
Tolerance to misalignment
+/- 5 mm in each direction from 5 mm setting gap

Electrical drawings

Connection example 1
Connection example 1

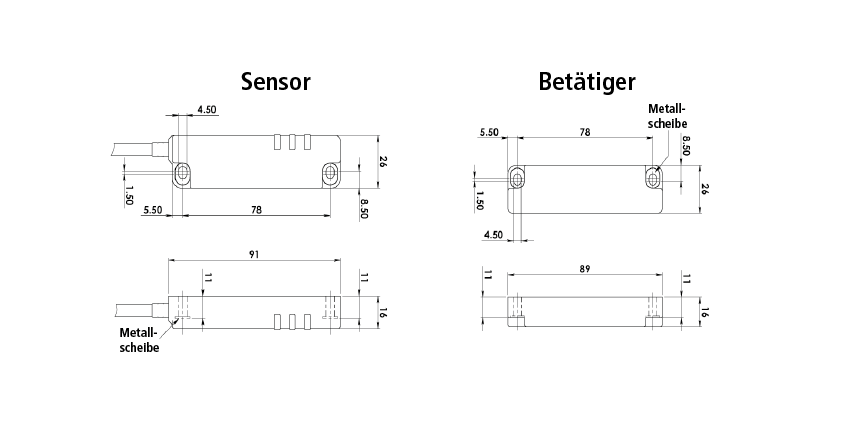

Drawings

Dimensions
Dimensions
