Safe communication — smart solutions for your safety
Visit us at the SPS in Nuremberg from 12 - 14 November.

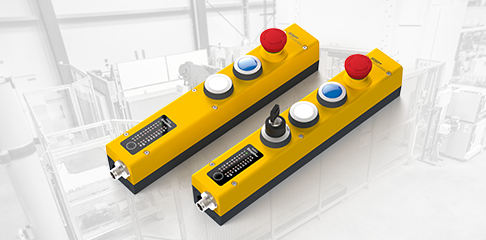

The Safety- PLC with integrated Interface Wireless Safety (Ple) where it is needed. Easy wireless machine safety via plug & play - Industry 4.0

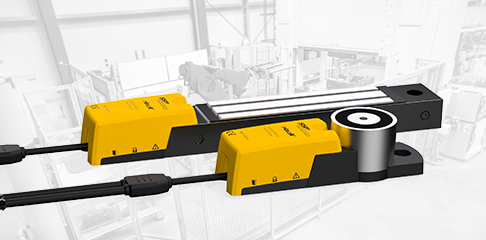

The smart, magnetic process lock with self monitoring An intelligent electronic magnet with integrated RFID- Sensor, which monitors itself - Industry 4.0

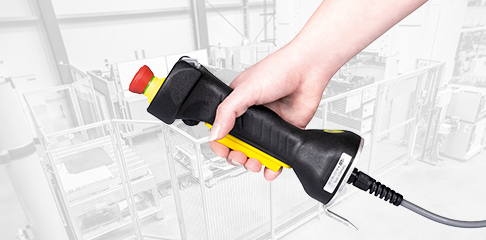

Enabling- and operating units with increased manipulation protection Ergonomic enabling switch with hand detection and home senor for increased manipulation protection
einfache, kabellose Maschinensicherheit
modular buildable
secure wireless or CAN networking

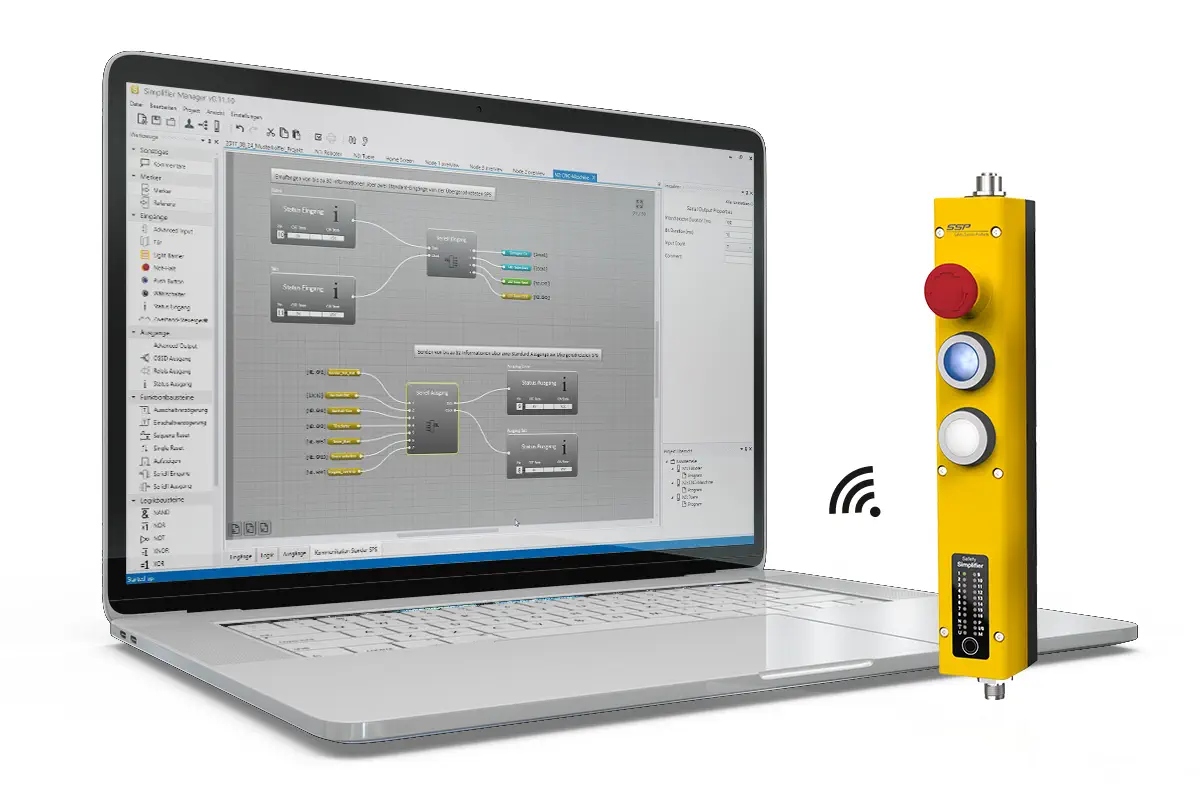

programmable safety PLC
14 safe I/O's and 2 relay outputs
networking of up to 16 units / 256 I/O's
two-way communication
other products
In the application shown, six contactless RFID sensors (SAFIX W3) safeguard an assembly plant. A safety light curtain with finger protection is provided for cyclic intervention. Two emergency stop buttons are installed for extended safety technology. Four Safety Simplifiers with various functions, such as control elements and distributors, evaluate the safety components and safely switch off the drives in the switchgear cabinet. The requirement for the application is to reduce the wiring effort and to ensure a flexible extension of the safety technology. Since a control cabinet of an assembly plant cannot always be set up directly next to the plant, a safe wireless interface was used to reduce the wiring effort and thus the commissioning time!
Automated injection molding machines place particularly high demands on safety technology. A performance level of PLe and highly coded safety sensors or switches are the basic prerequisites for such a safety concept. Injection molding machine manufacturers therefore use standardized EUROMAP interfaces between injection molding machines and external safety devices. The EUROMAP 73strong> and EUROMAP 78strong> are frequently used here. The EUROMAP 73strong>, driven by DIN EN 201, requires three NO contacts and three NC contacts from the safety devices to integrate the injection molding machine. The newer EUROMAP 78strong>, on the other hand, uses intrinsically safe OSSD signals (Output Switching Signal Device). With the Safety Simplifier, SSP offers a ready-made safety solution with integrated EUROMAP 73strong> or EUROMAP 78strong> interface as a plug & play variant. Thanks to the safety-oriented wireless communication (PLe), the system is extremely flexible and there is no cabling effort for the user.entsteht kein Verkabelungsaufwand.
Simple planning Thanks to the modular design, up to 16 Safety Simplifiers can take over all safe and non-safe control tasks decentrally distributed on the robot cell. Exactly where they are needed. If doors, robots or machines are subsequently integrated, another Saferty Simplifier implements the safety functions by integrating them in the safety circuit.
Reduction of commissioning time The Safety Simplifier's IP65 protection rating eliminates the need for an external safety controller or even a control cabinet for the safety technology. Wiring of safety components is reduced to a minimum with the help of safe wireless communication.
The strength of the Safety Simplifier in collecting and processing safe inputs and outputs and switching them off safely in a decentralized manner is also fully utilized in combination with Safety Integrated. Safety Simplifier flexibly collects signals from light curtains, control units and safety switches. Simple actuators such as drives can be switched off directly. Drives or robots that must be switched off via a safe BUS can be controlled via the existing Safety Integrated safety controller. The Safety Simplifier transfers up to 14 individual safety functions according to PLd or 7 individual safety functions according to PLe to the higher-level safety controller. For a robot system, usually only 2 to 4 safety functions are required. Status information is sent to the standard PLC via two to four non-safe inputs and outputs and the free software gateway. The entire, safe logic can be programmed and executed in the Safety Simplifier. The safety program in the Safety Integrated control is reduced to a minimum.
