R-SAFE_4

Your advantages



  • Clearly visible status LED
  • RFID technology
  • Maximum protection against tampering
  • Suitable for series connections



Downloads

R-SAFE RFID PRO C S T X
RFID safety sensor | Pro Version



  • Combination of sensor + standard actuator
  • Teach-in coding
  • Automatic restart
  • Individual status output
  • 10 m cable



Teach-in coding: the actuator is programmed via teach-in and permanently assigned to the sensor during commissioning (the process can be repeated if necessary)



Betreff: R-SAFE RFID PRO C S T X RFID safety sensor | Pro Version

General data

Item number
1046295
Item number (old)
-
Type designation
R-SAFE RFID PRO C S T X
Connection type
cable
Sensor type
RFID safety sensor
Encoding type
Actuator with teach-in coding
Response time
55 ms

Safety data

Safety level
PLe
PFHD (IEC 61508)
2,18E-09
Safety inputs
2 digital inputs

Environmental conditions

Max. operating temperature
−25 … 70 °C

Electrical data

Safety output type
OSSD (300 mA at 24 VDC) with short-circuit and overload protection
Minimum switching voltage
300
Number of safety outputs
2 pairs of OSSD (300 mA)
LED indicators
3-colour LED status indicator
Max. voltage (VDC)
24 ± 20%

Mechanical data

Dimensions
Sensor
Width
28,5 mm
Length
50 mm
Height
18 mm
Betätiger
Width
28,5 mm
Length
42 mm
Height
18 mm
-
Mounting
M4 screw
Type of housing
Nylon, rectangular
Shift spacing
12 ... 25 mm

Drawings

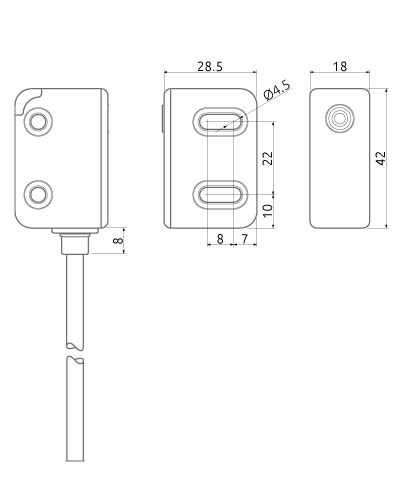

Dimensions
Dimensions
