R-SAFE_4

Your advantages



  • Clearly visible status LED
  • RFID technology
  • Maximum protection against tampering
  • Suitable for series connections



Downloads

R-SAFE RFID PLUS C S U X
RFID safety sensor | Plus Version



  • Combination of sensor + standard actuator
  • Individual coding
  • Manual/automatic restart
  • Status output
  • Centre-to-centre distance
  • 10 m cable



Unique coding: the actuator is permanently assigned to the sensor during manufacture (it cannot be replaced by another actuator)



Betreff: R-SAFE RFID PLUS C S U X RFID safety sensor | Plus Version

General data

Item number
1046290
Item number (old)
-
Type designation
R-SAFE RFID PLUS C S U X
Connection type
cable
Sensor type
RFID safety sensor
Encoding type
Customised coding actuator
Response time
55 ms

Safety data

Safety level
PLe
PFHD (IEC 61508)
2,18E-09
Safety inputs
2 digital inputs

Environmental conditions

Max. operating temperature
−25 … 70 °C

Electrical data

Safety output type
OSSD (300 mA at 24 VDC) with short-circuit and overload protection
Minimum switching voltage
300
Number of safety outputs
2 pairs of OSSD (300 mA)
LED indicators
3-colour LED status indicator
Max. voltage (VDC)
24 ± 20%
Connector
M12 8-pin pigtail plug

Mechanical data

Dimensions
Sensor
Width
28,5 mm
Length
50 mm
Height
18 mm
Betätiger
Width
28,5 mm
Length
42 mm
Height
18 mm
-
Mounting
M4 screw
Type of housing
Nylon, rectangular
Shift spacing
12 ... 25 mm

Drawings

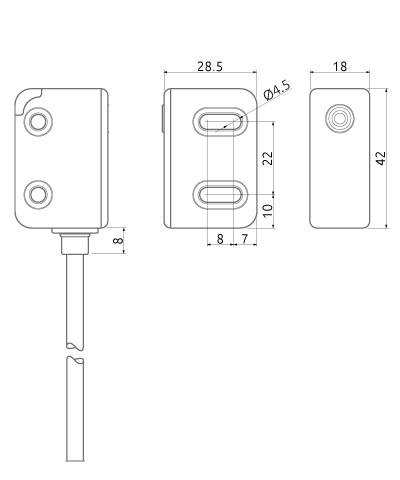

Dimensions
Dimensions
