R-SAFE RFID A M T
RFID safety sensor

Flat actuator
Teach-in coding
Intermediate shaft 40 mm

Teach-in coding: the actuator is programmed via teach-in and permanently assigned to the sensor during commissioning (the process can be repeated if necessary)

Betreff: R-SAFE RFID A M T RFID safety sensor

General data

Item number

1046302

Item number (old)

Type designation

R-SAFE RFID A M T

Sensor type

RFID safety sensor

Encoding type

Actuator with teach-in coding

Response time

55 ms

Safety data

Safety level

PLe

PFHD (IEC 61508)

2,18E-09

Safety inputs

2 digital inputs

Environmental conditions

Max. operating temperature

−25 … 70 °C

Electrical data

Safety output type

OSSD (300 mA at 24 VDC) with short-circuit and overload protection

Minimum switching voltage

300

Number of safety outputs

2 pairs of OSSD (300 mA)

LED indicators

3-colour LED status indicator

Max. voltage (VDC)

24 ± 20%

Mechanical data

Dimensions

Sensor

Width

9 mm

Length

52 mm

Height

18 mm

Mounting

M4 screw

Type of housing

Nylon, rectangular

Shift spacing

12 ... 25 mm

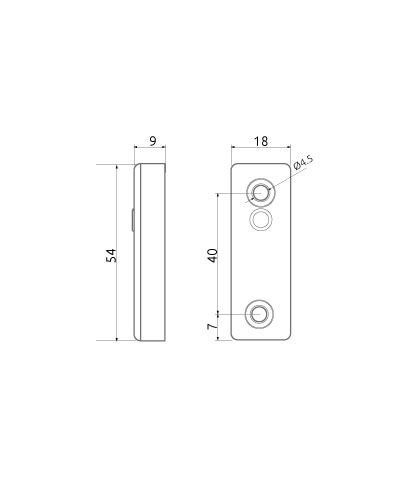

Drawings

Dimensions
