S16LDRBCB-H06-Q1A2-Q2A0-Q3A1-Q4A0-Q5U0-Q6U0-Q7U0-Q8U0-W248
Safety Simplifier Standard Module – wireless + CAN passive distributor

  • S16LDRBCB-H06: Safety Simplifier with 14 safe I/Os plus 2 dual relay outputs and LED diagnostics for easy commissioning
  • secure wireless communication
  • secure CAN communication
  • Lower housing section: Colour anthracite, no cut-out for connection on the rear
  • Upper housing section: Colour yellow
  • Q1A2: Connection at the bottom left with 5-pin M12 female connector, Simple CAN
  • Q2A0: Connection top left with cover
  • Q3A1: Connection bottom right with 5-pin M12 male connector, Simple CAN
  • Q4A0: Connection top right with cover
  • Q5U0: Connection on the top cover with an 8-pin M12 female connector for HOLDX R_1
  • Q6U0: Connection on the top cover with an 8-pin M12 female connector for HOLDX R_1
  • Q7U0: Top cover connection with 8-pin M12 female connector for HOLDX R_1
  • Q8U0: Top cover connection with 8-pin M12 female connector for HOLDX R_1
  • W248: pre-wired / Q1 & Q3 CAN connected

Betreff: S16LDRBCB-H06-Q1A2-Q2A0-Q3A1-Q4A0-Q5U0-Q6U0-Q7U0-Q8U0-W248 Safety Simplifier Standard Module – wireless + CAN passive distributor

General data

Type designation
S16LDRBCB-H06-Q1A2-Q2A0-Q3A1-Q4A0-Q5U0-Q6U0-Q7U0-Q8U0-W248
Item number
1046817
Item number (old)
-
Functional type
Safety PLC with a safe wireless interface + safe CAN communication, internal antenna
Connection
- Position 1
Q1A2 – Connection at the bottom left with a 5-pin M12 female connector, Simple CAN
- Position 2
Q2A0 - Top left connection with cover
- Position 3
Q3A1 – Connection at the bottom right with a 5-pin M12 male connector, Simple CAN
- Position 4
Q4A0 - Top right connection with cover
Connection front
- Position 5
Q5U0 - Socket connector M12 8-pin for process guard locking HOLDX R_1
- Position 6
Q6U0 - Socket connector M12 8-pin for process guard locking HOLDX R_1
- Position 8
Q8U0 - Socket connector M12 8-pin for process guard locking HOLDX R_1
- Position 7
Q7U0 - Socket connector M12 8-pin for process guard locking HOLDX R_1

Safety data

CPU
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel input
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
2-channel input
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
1-channel OSSD output
- EN ISO 13849-1: 2008
Category 2
- IEC 61508-2
SIL CL 2
- EN 62061 PFHD [1/h]
✔
- EN ISO 13849-1: 2008 TM [Year]
20
2- channel OSSD Output
- EN ISO 13849-1: 2008
Category 4
- IEC 61508-2
SIL CL 3
- EN ISO 13849-1: 2008 TM [Year]
20
- EN 62061 PFHD [1/h]
✔
Approvals
CE, TÜV

Environmental conditions

Max. storage temperature
-20 °C ... +65 °C
Max. operating temperature
-20 °C ... +65 °C

Electrical data

Technical data wireless safety
- max. amount of safe wireless channels
16
Channels
- Channel 1
2405 MHz
- Channel 2
2410 MHz
- Channel 3
2415 MHz
- Channel 4
2420 MHz
- Channel 5
2425 MHz
- Channel 6
2430 MHz
- Channel 7
2435 MHz
- Channel 8
2440 MHz
- Channel 9
2445 MHz
- Channel 11
2455 MHz
- Channel 10
2450 MHz
- Channel 12
2460 MHz
- Channel 13
2465 MHz
- Channel 14
2470 MHz
- Channel 15
2475 MHz
- Channel 16
2480 MHz
- amount of clamps
32
Current consumption
82 mA with LED display
Conductor cross section
- single wire
0,08 … 0,5 mm²
- fine wire
0,08 … 0,5 mm²
- fine wired (wire sleeve without plastic collar)
0,25 mm²
stripping length
5-6 mm
configurable In-/ Outputs
14 semiconductor In-/ Outputs with help of software configurable
✔
Amount of safe inputs
max. 14
Amount of safe semi-conductors OSSD outputs
max. 14
Amount of semi-conductors auxilliary outputs
max. 14
Amount of semi-conductors clock outputs
max. 8
Input current
HIGH 75% from UB (adjustable by software) LOW 25% from UB (adjustable by software)
Output type
PNP-Semi-conductor
Output voltage
Operating voltage UB -0,5 V
Seperate output current
max. 600 mA (with UB 24 V)
Total output current
max. 0,6 mA (with UB 24 V)
General data
Memory card
Installation of memory card MEM SP-N-88-001-93 possible
Programming connection
Micro USB Wireless-Interface
Type terminal connection
clamp terminal
- fine wired (wire sleeve with plastic collar)
0,08 … 0,5 mm²
Input voltage
HIGH 75% from UB (adjustable by software) LOW 25% from UB (adjustable by software)
Technical data inputs
Technical data safe OSSD outputs, auxilliary and test pulse outputs
Short-circuit proof
Yes
DIP switch setting options
DIP switch setting options
Selection of the connected sensors

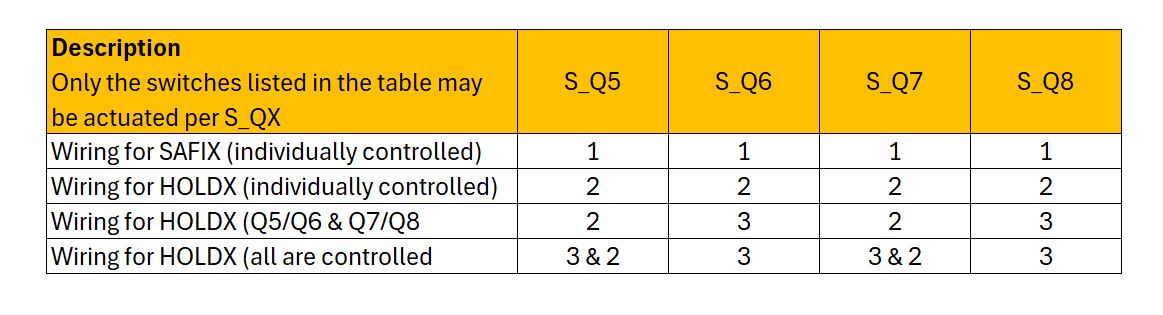

The dip switches are used to select which sensor technology is connected to the individual socket connections (Q5-Q8)

Mechanical data

Installation opening of buttons
22,5 mm
Type of housing
H10
Dimensions
Height
44 mm
Length
253 mm
Width
42 mm

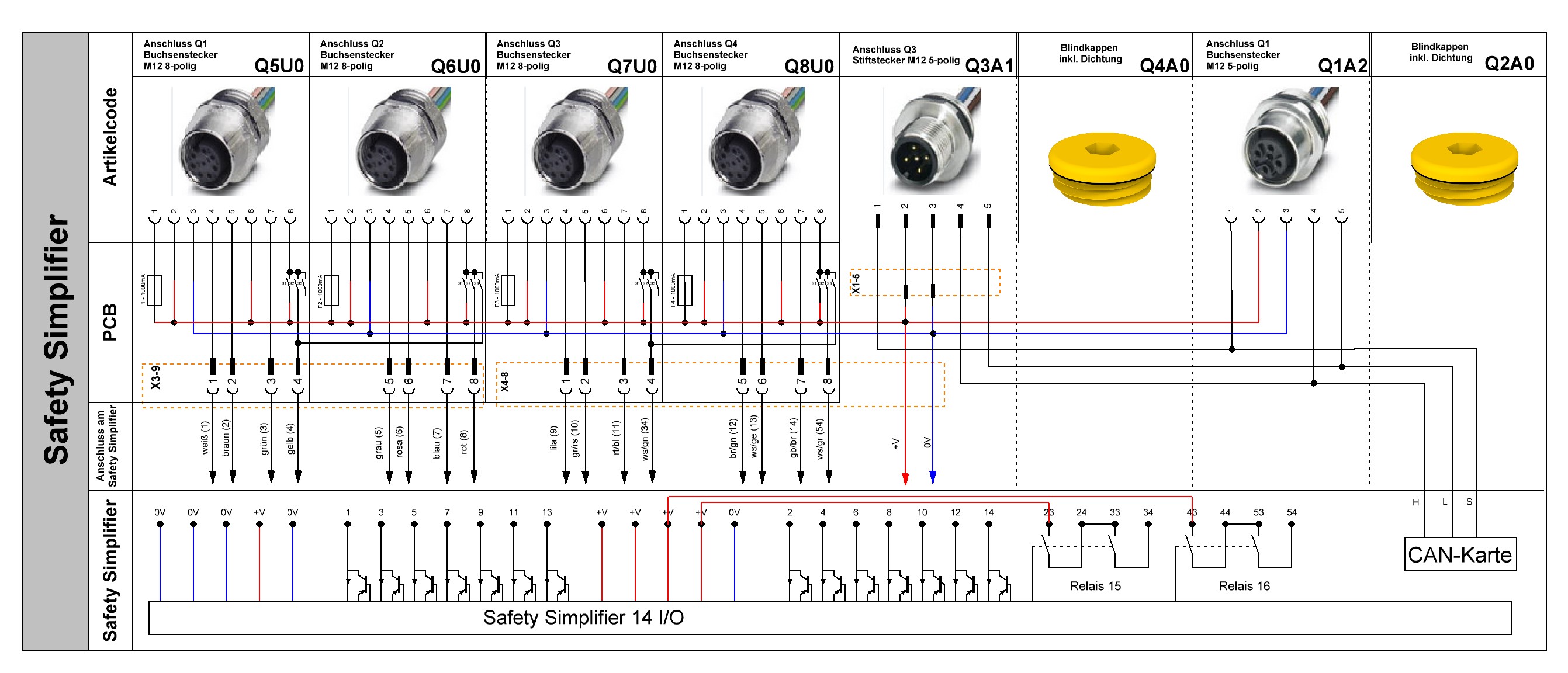

Electrical drawings

Connection example 1
Connection example 1

Equipment

Mounting plate big
Mountingplate small
Screw with seal
Simplifier EXTA 1 m
Simplifier EXTA 10 m
Simplifier EXTA 2 m
Simplifier EXTA 5 m
Simplifier EXTA 8 m
Simplifier Manager
Simplifier Monitor SRM
Simplifier ZHMS
Simplifier ZHS
