ZEUS 11-15 10 31
Enabling/operating unit

Zeus Zustimmtaster

Zeus Zustimmtaster mit Handerkennung

ZEUS Zustimmtaster

ZEUS guarantees fatigue free activity, thanks to an ergonomical design and low weight. It is suitable for left and right handed persons and easily operated with gloves.
With it's way to function the 3-Step-Enabling Switch ZEUS creates ideal safety conditions in your enabling operation.

Betreff: ZEUS 11-15 10 31 Enabling/operating unit

General data

Item number

1044839

Item number (old)

SP-X-85-900-57

Functional type

Enabling/operating unit

Standards

3-stage enabling switch: IEC60947-5-1, IEC60947-5-8, ISO121000-1, IEC60204-1

Safety data

Approvals

TÜV, CE, UL

Environmental conditions

Max. storage temperature

-40 ...+80 °C

Max. operating temperature

-5 ... +60 °C

Clearance and creepage distances according to IEC/EN 606641

- Overvoltage category: 3 // - Pollution degree: III

UL Enclosure Type Rating

Type 1

Electrical data

Supply voltage

DC ± 5% 24 V

B10d-value

100.000

Enabling switch

Rated operating voltage Ue

DC: 30 V

Rated operating current

Ie DC: 1 A

Position 3

< 30 N

Rated operating voltage Ue

DC: 30 V

Rated operating current Ie

DC: 1 A

Test data according to UL508

42 VDC/100 mA

Mechanical service life

50,000

Torque max.

2,5 Nm

Actuating force

Position 1

> 4 N

Position 2

4 N bis 30 N

Actuating force

Position 1

> 10 N

Switching capacity

AC: 10le / DC: 1.1le

Mechanical data

Base plate

With mounting bracket: only for use with the ZEUS H (SP-X-85-800-00) // screw connections: M20 internal thread

Enabling button material

Silicone

Length

71 mm

Width

69 mm

Height

210 mm

Housing material

PA6.6 30% GF, colour black

Material for base plate

V2A

Mechanical service life

100.000

Screw torque

0,8 Nm

Electrical drawings

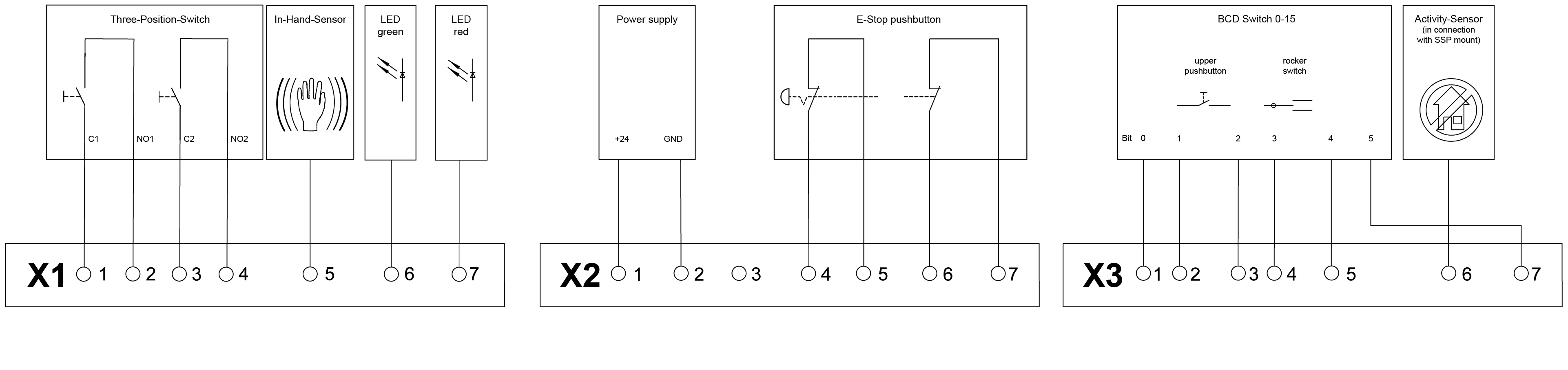

Pin assignment 1

Drawings

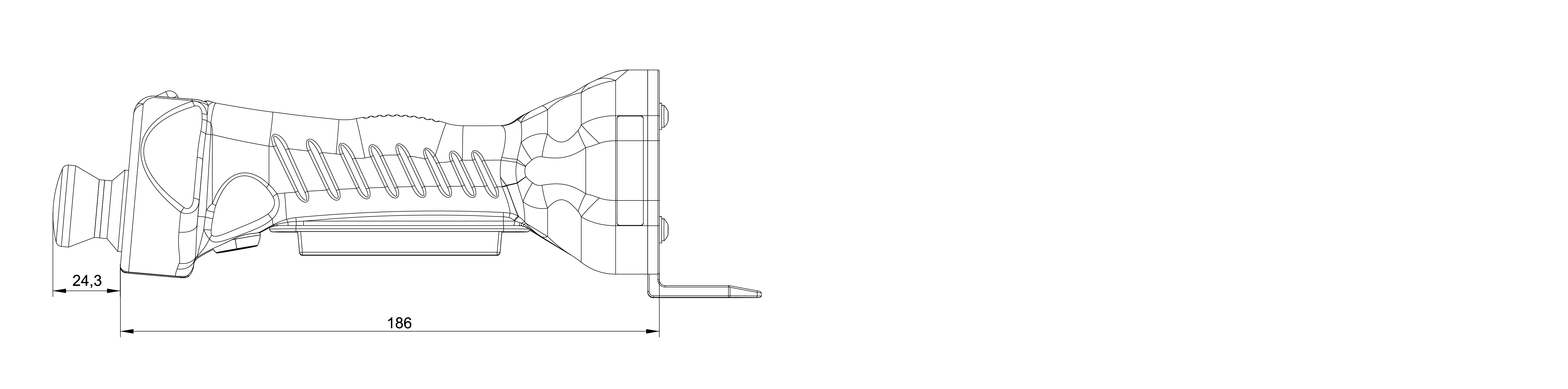

Dimensions 1

Equipment

MOSAIC M1

S2 series

SP UH-K

X2 series

ZEUS H

Zeus H2

ZEUS ZHS
