SAFEGATE SO 4B LR
Safety light curtain for access control with automatic/manual restart and EDM (No integrated muting function), Long range, with status lamp

General data

Item number

SP-R-13-900-18

Type designation

SAFEGATE SO 4B LR

Functional type

Safety light curtain for access control with automatic/manual restart and EDM (No integrated muting function), Long range, with status lamp

Number of beams

Built-in muting lamp

Yes

Signalling

LED display for diagnostics, light curtain status and muting sensor status

Detection

Access control

Safety data

MTTFd (ISO 13849-1) years

253.3

SIL (acc. IEC 62061)

Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4

PFHd (EN ISO 13849)

1.03E-08

Approvals

CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA

Performance Level (EN ISO 13849-1: 2015)

Type 4 - PL e

Safety functions

Integrated

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

Electrical data

Max. voltage (VDC)

24 ± 20%

Response times

5.5

Safety output type

2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal

Safety outputs

2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)

910

Resolution (mm)

Multi-beam

Controlled height (mm)

956

Max. Range (m)

Restart

Built-in - user selectable automatic or manual

Total height (mm)

1076

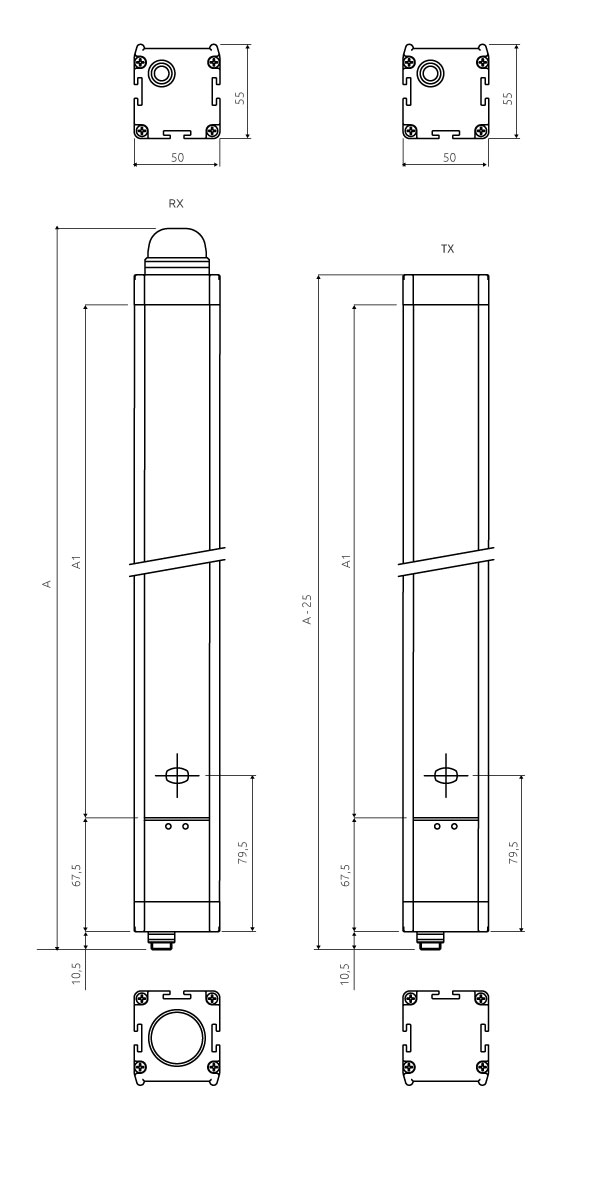

Cross-sectional dimensions (mm)

50 x 55

Mounting

Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)

Max. Length of connection cable (m)

100

Connections

M12 5-pole male connector (emitter), M12 8-pole male connector (receiver)

Packaging dimensions HxLxW (mm)

145 x 1150 x 200

Equipment

C8D10

C8D25

C8D40

C8D5

CD10

CD15

CD20

CD25

CD5

CD50
