M12-M12-C8153-G
M12-M12-interconnection cable, 8-pin, 1,5 m


M12-female connector, 8-pin, M12-male connector, 8-pin – 1,5 m

Betreff: M12-M12-C8153-G M12-M12-interconnection cable, 8-pin, 1,5 m

General data

Type designation
M12-M12-C8153-G
Item number
1022369
Item number (old)
SP-X-33-000-26
Functional type
interconnection cable
Codierung
A-coded
Cable length
1,5 m
Suitable for
HOLDX R1
✔
Master HOLDX R2
✔
SAFIX 3
✔
ATOM
✔
EOS4 X receiver
✔
EDI B7B
✔
EDI C7
✔
EDI E1
✔
Safety Simplifier
✔
Simplifier XCONN
✔
XCONN
✔

Safety data

Approvals
UL2464
IP protection
IP67

Environmental conditions

Max. operating temperature
-10~80 °C
Max. storage temperature
-10~80 °C

Electrical data

Pin assignment according DIN 47100
1
White
2
Brown
3
Green
4
Yellow
5
Gray
6
Pink
7
Blue
8
Red
Wire colors
brown
Connector 1
2
Connector 2
2
Shielding
none

Mechanical data

Connection X1
M12
Connector type X1
female connector
Connecting direction X1
straight
Threaded ring material X1
Nickel-plated brass
Number of pins X1
8
Housing material X1
PA
Connection X2
M12
Connector type X2
male connector
Connecting direction X2
straight
Anzahl Pins X2
8
Threaded ring material X2
Nickel-plated brass
Shape of the plug connectors X2
M12 8-pin female connector
Housing material X2
PA
Housing colour X2
Black
Cable length L1
1500 mm
Cable sheath material K1
PVC
Colour of cable outer sheath K1
Black
Conductor cross-section K1
0,34 mm²
Conductor material K1
Tinned copper
Conductor ínsulation K1
SR-PVC
Drag chain capability K1
No
Cable diameter K1
ø6,5 mm
Conductor cross-section AWG K1
22AWG

Electrical drawings

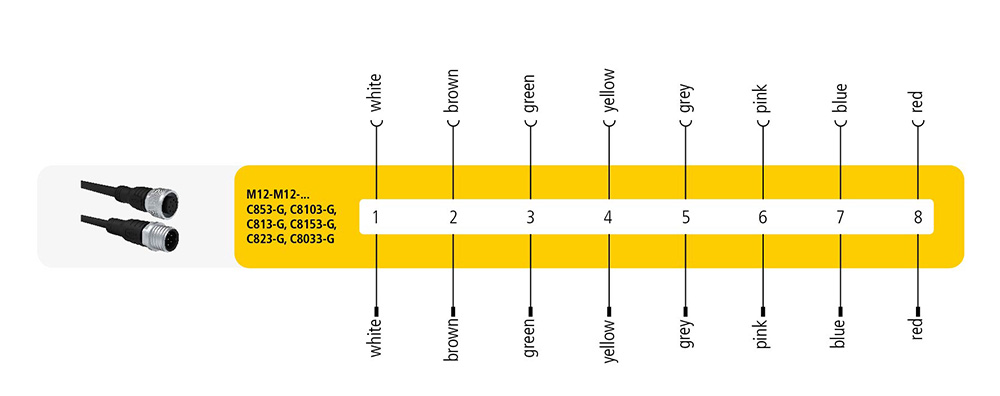

Pin assignment 1
Pin assignment 1

Drawings

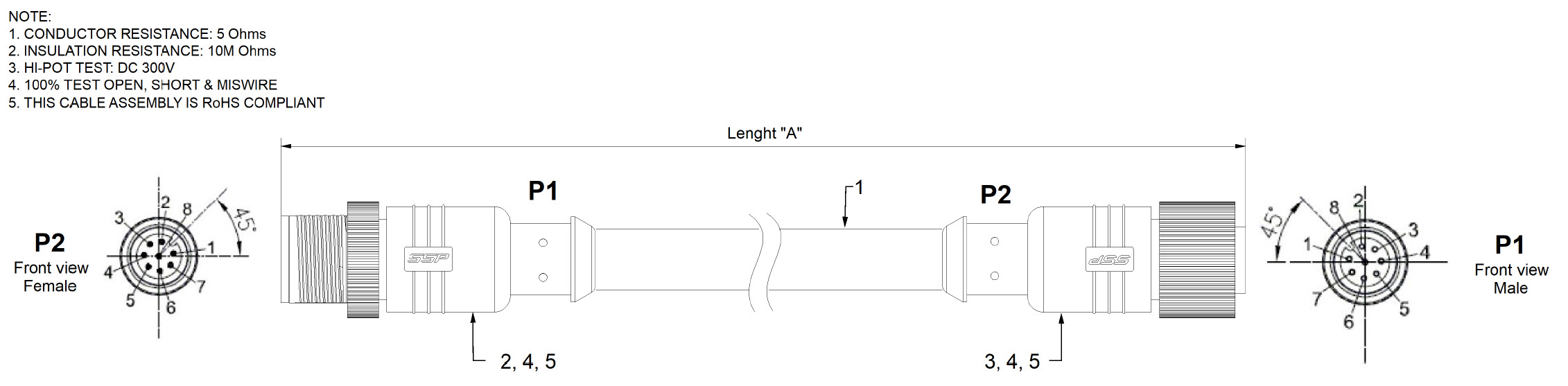

Dimensions
Dimensions
