SAFEGATE SMPO 4B
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

Betreff: SAFEGATE SMPO 4B Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

General data

Item number
SP-R-13-906-82
Type designation
SAFEGATE SMPO 4B
Functional type
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions
Number of beams
4
Muting function
Integrated
Muting logic
T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.
Max. Override timeout
15 min.
Max. Muting timeout
30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)
Built-in muting lamp
Yes
Muting sensors
External with relay or PNP DARK-ON output, Muting arms kit, Muting brackets with M5 sensors kit
Signalling
LED display for diagnostics, light curtain status and muting sensor status
Detection
Access control
Programmability
Yes

Safety data

MTTFd (ISO 13849-1) years
253.3
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
1.03E-08
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
5.5
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
910
Resolution (mm)
Multi-beam
Controlled height (mm)
989
Max. Range (m)
12
Restart
Built-in - user selectable automatic or manual

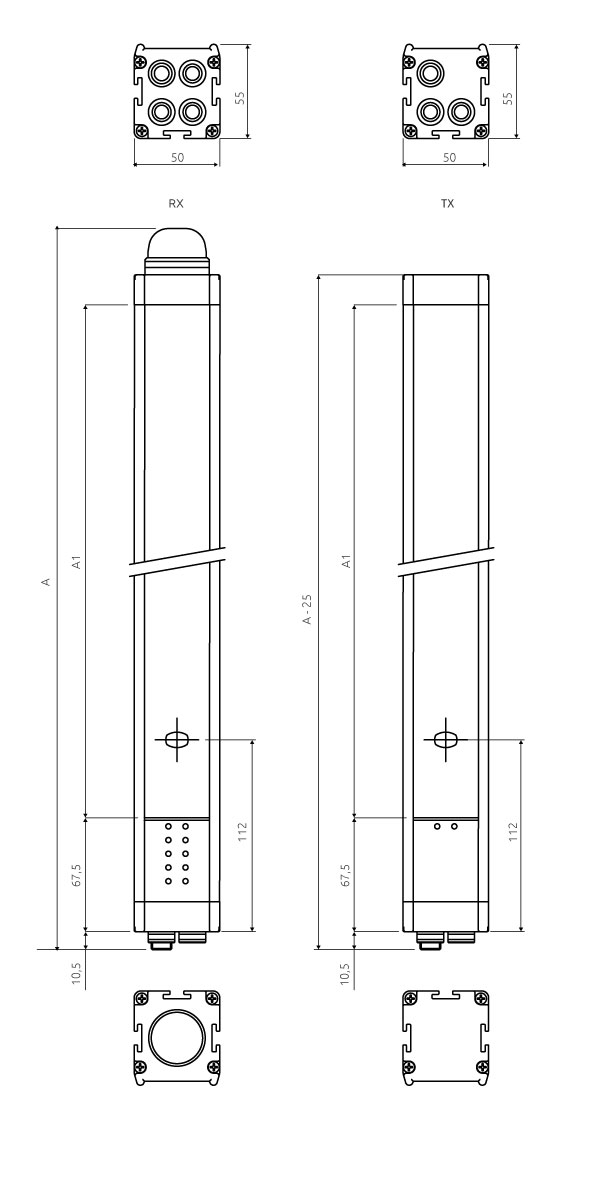

Total height (mm)
1110
Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (programming and external Muting lamp)
Packaging dimensions HxLxW (mm)
145 x 1180 x 200
Gross weight (g)
6550.36

Equipment

CD10
CD15
CD20
CD25
CD5
CD50
MICRON M TRX A
MICRON M TRX A G
MICRON M TRX B
MICRON M TRX B G
MICRON M5 A
MICRON M5 B
MICRON M5 B
MICRON M5 H A
MICRON M5 H B
SAFEGATE M SG BOX
SAFEGATE M SG BOX OSSD
SAFEGATE M SG BOX PLUS
SAFEGATE M SG BOX RST P
SAFEGATE M SGO BOX PLUS
SAFEGATE MA L2P TRX
SAFEGATE MA L2P TRX G
SAFEGATE MA L2P TRX V
SAFEGATE MA T2X
SAFEGATE MA T4P TRX
SAFEGATE MA T4P TRX G
SAFEGATE MA T4P TRX V
SAFEGATE MA T4P TRX VG
SAFEGATE MZ L2P V
SAFEGATE MZ L2XP
SAFEGATE MZ L2XP H
SAFEGATE MZ L2XP TRX
SAFEGATE MZ L2XP TRX G
SAFEGATE MZ L2XP TRX H
SAFEGATE MZ T2X
SAFEGATE MZ T2X H
SAFEGATE MZ T2X TRX
SAFEGATE MZ T2X TRX G
SAFEGATE MZ T2X TRX H
SAFEGATE MZ T4P
SAFEGATE MZ T4P H
SAFEGATE MZ T4P TRX
SAFEGATE MZ T4P TRX G
SAFEGATE MZ T4P TRX H
SAFEGATE MZ T4P V
