SAFEGATE SMPO 303
Safety light curtain for hand detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

Betreff: SAFEGATE SMPO 303 Safety light curtain for hand detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

General data

Item number
SP-R-13-902-81
Type designation
SAFEGATE SMPO 303
Functional type
Safety light curtain for hand detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions
Number of beams
16
Muting function
Integrated
Muting logic
T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.
Max. Override timeout
15 min.
Max. Muting timeout
30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)
Built-in muting lamp
Yes
Muting sensors
External with relay or PNP DARK-ON output, Muting arms kit, Muting brackets with M5 sensors kit
Signalling
LED display for diagnostics, light curtain status and muting sensor status
Detection
Hand
Programmability
Yes

Safety data

MTTFd (ISO 13849-1) years
223.2
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
1.78E-08
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
8
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
310
Resolution (mm)
30
Controlled height (mm)
300
Max. Range (m)
12
Restart
Built-in - user selectable automatic or manual
Total height (mm)
420

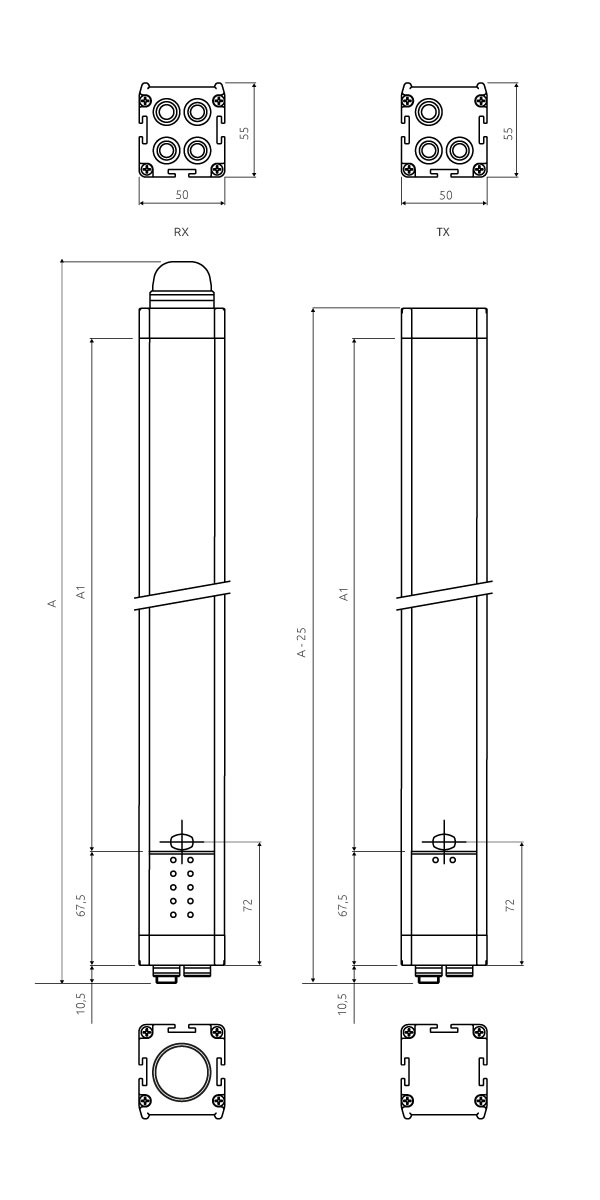

Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (programming and external Muting lamp)
Packaging dimensions HxLxW (mm)
145 x 490 x 200
Gross weight (g)
2962.46

Equipment

CD10
CD15
CD20
CD25
CD5
CD50
MICRON M TRX A
MICRON M TRX A G
MICRON M TRX B
MICRON M TRX B G
MICRON M5 A
MICRON M5 B
MICRON M5 B
MICRON M5 H A
MICRON M5 H B
SAFEGATE M SG BOX
SAFEGATE M SG BOX OSSD
SAFEGATE M SG BOX PLUS
SAFEGATE M SG BOX RST P
SAFEGATE M SGO BOX PLUS
SAFEGATE MA L2P TRX
SAFEGATE MA L2P TRX G
SAFEGATE MA L2P TRX V
SAFEGATE MA T2X
SAFEGATE MA T4P TRX
SAFEGATE MA T4P TRX G
SAFEGATE MA T4P TRX V
SAFEGATE MA T4P TRX VG
SAFEGATE MZ L2P V
SAFEGATE MZ L2XP
SAFEGATE MZ L2XP H
SAFEGATE MZ L2XP TRX
SAFEGATE MZ L2XP TRX G
SAFEGATE MZ L2XP TRX H
SAFEGATE MZ T2X
SAFEGATE MZ T2X H
SAFEGATE MZ T2X TRX
SAFEGATE MZ T2X TRX G
SAFEGATE MZ T2X TRX H
SAFEGATE MZ T4P
SAFEGATE MZ T4P H
SAFEGATE MZ T4P TRX
SAFEGATE MZ T4P TRX G
SAFEGATE MZ T4P TRX H
SAFEGATE MZ T4P V
