SAFEGATE SM

Downloads

SAFEGATE SMPO 1651
Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

Betreff: SAFEGATE SMPO 1651 Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions

General data

Item number
SP-R-13-900-90
Type designation
SAFEGATE SMPO 1651
Functional type
Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp, adjustable functions
Number of beams
165
Muting function
Integrated
Muting logic
T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.
Max. Override timeout
15 min.
Max. Muting timeout
30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)
Built-in muting lamp
Yes
Muting sensors
External with relay or PNP DARK-ON output, Muting arms kit, Muting brackets with M5 sensors kit
Signalling
LED display for diagnostics, light curtain status and muting sensor status
Detection
Finger
Programmability
Yes

Safety data

MTTFd (ISO 13849-1) years
191.5
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
3.52E-08
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
17.2
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal

Mechanical data

Protected height (mm)
1660
Resolution (mm)
14
Controlled height (mm)
1650
Max. Range (m)
6
Restart
Built-in - user selectable automatic or manual
Total height (mm)
1770

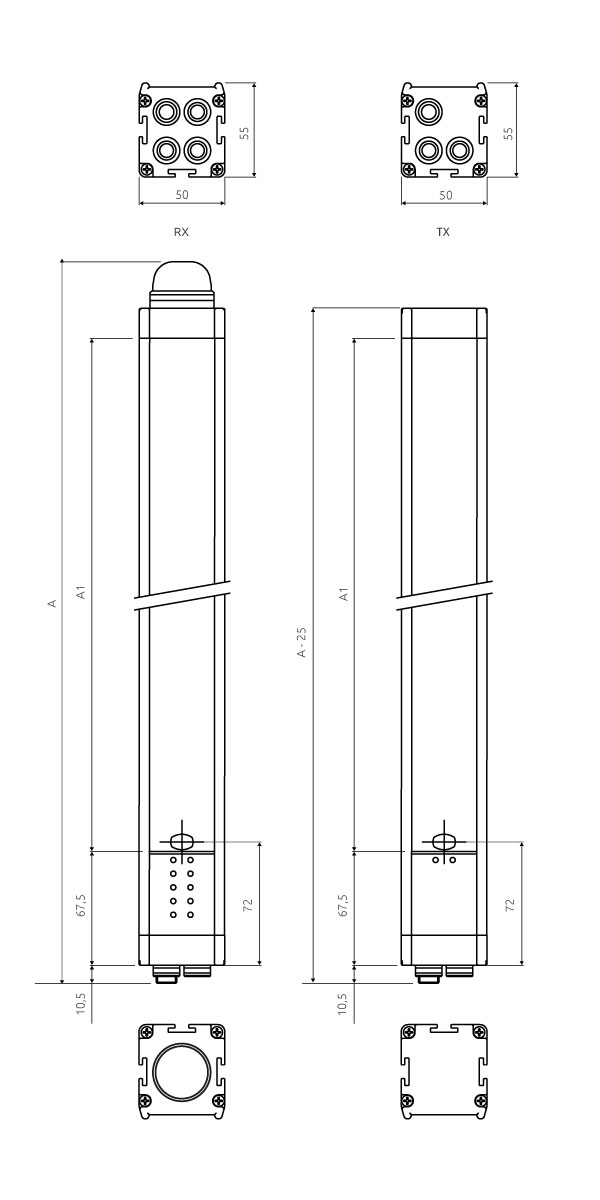

Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pole male connector (emitter), M12 12-pole male connector (receiver), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (programming and external Muting lamp)
Packaging dimensions HxLxW (mm)
145 x 1840 x 200
