SAFEGATE SMO 2B TRX
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, transmitter/receiver device TRX


Betreff: SAFEGATE SMO 2B TRX Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, transmitter/receiver device TRX


General data

Item number
SP-R-13-906-50
Type designation
SAFEGATE SMO 2B TRX
Functional type
Safety light curtain for access control with integrated muting function, automatic/manual restart and EDM, with muting lamp, transmitter/receiver device TRX
Number of beams
2
Muting function
Integrated
Muting logic
T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.
Max. Override timeout
15 min.
Max. Muting timeout
30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)
Built-in muting lamp
Yes
Muting sensors
Muting arms TRX kit, Muting brackets with MTRX sensors kit
Signalling
LED display for diagnostics, light curtain status and muting sensor status
Detection
Access control

Safety data

MTTFd (ISO 13849-1) years
409
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
7.42E-09
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
5.5
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
510
Resolution (mm)
Multi-beams
Controlled height (mm)
579
Max. Range (m)
8
Restart
Built-in - user selectable automatic or manual

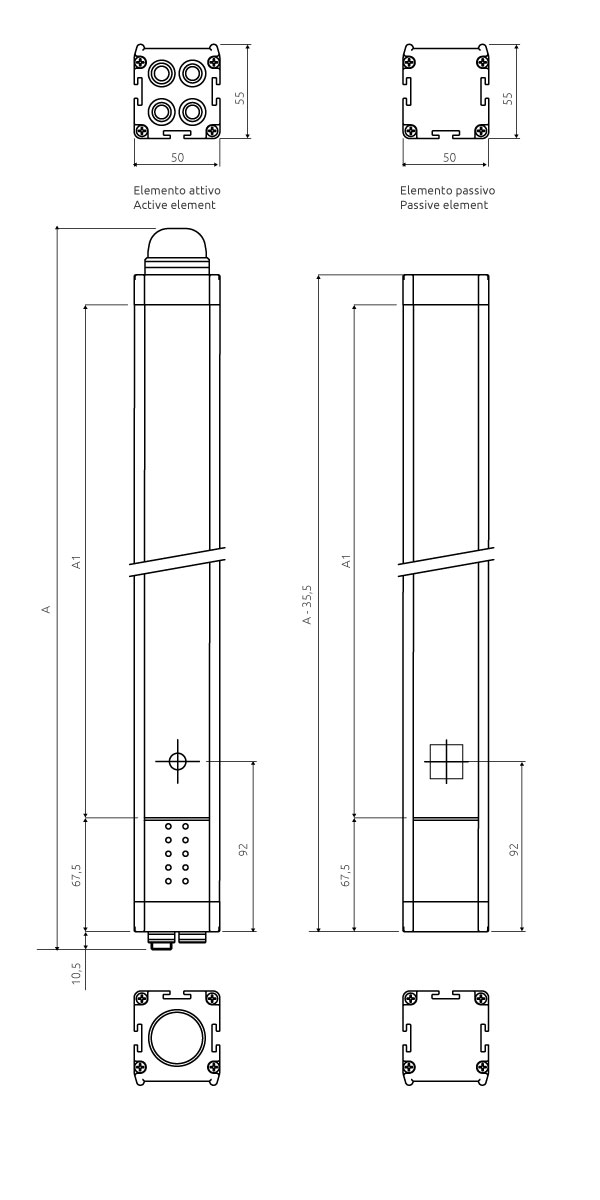

Total height (mm)
699
Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 12-pole male connector (active element), M12 5-pole female connectors (Muting sensors) M12 5-pole female connector (external Muting lamp)
Packaging dimensions HxLxW (mm)
145 x 760 x 200
Gross weight (g)
4359.16

Equipment

CD8
