SAFEGATE SMO 1651
Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp


Betreff: SAFEGATE SMO 1651 Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp


General data

Item number
SP-R-13-900-50
Type designation
SAFEGATE SMO 1651
Functional type
Safety light curtain for finger detection with integrated muting function, automatic/manual restart and EDM, with muting lamp
Number of beams
165
Muting function
Integrated
Muting logic
T (Two way) Logic with 2 or 4 crossed sensors or parallel beams. L (One way) Logic with 2 crossed sensors or parallel beams.
Max. Override timeout
15 min.
Max. Muting timeout
30 sec. or 9 hours selectable - Infinite (only models with 4 sensors sequential muting logic)
Built-in muting lamp
Yes
Muting sensors
External with relay or PNP DARK-ON output, muting arm kit, muting bracket kit with M5 sensors
Signalling
LED display for diagnostics, light curtain status and muting sensor status
Detection
Finger

Safety data

MTTFd (ISO 13849-1) years
191.5
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
3.52E-08
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
17.2
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
1660
Resolution (mm)
14
Controlled height (mm)
1650
Max. Range (m)
6
Restart
Built-in - user selectable automatic or manual

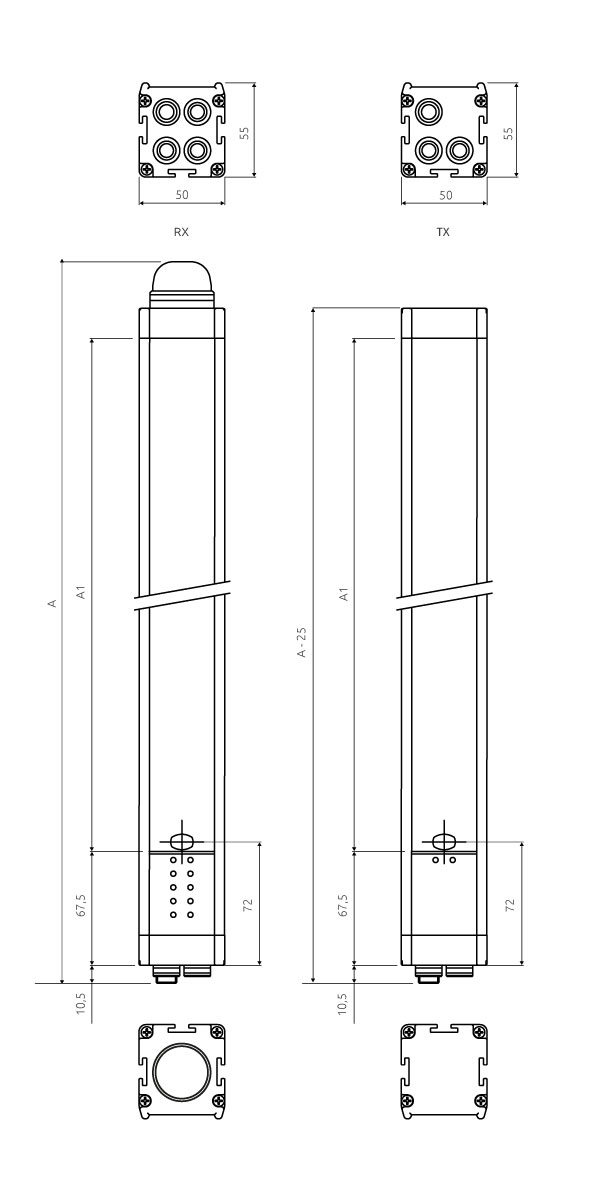

Total height (mm)
1770
Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pin plug (transmitter), M12 12-pin plug (receiver), M12 5-pin sockets (muting sensors) M12 5-pin socket (external muting lamp)
Packaging dimensions HxLxW (mm)
145 x 1840 x 200

Equipment

CD5
