SAFEGATE S 3B
Safety light curtain for access control with automatic/manual restart and EDM (No integrated muting function)

Betreff: SAFEGATE S 3B Safety light curtain for access control with automatic/manual restart and EDM (No integrated muting function)

General data

Item number
SP-R-13-906-01
Type designation
SAFEGATE S 3B
Functional type
Safety light curtain for access control with automatic/manual restart and EDM (No integrated muting function)
Number of beams
3
Built-in muting lamp
No
Signalling
LEDs for status and diagnostics of the light curtain
Detection
Access control

Safety data

MTTFd (ISO 13849-1) years
262.4
SIL (acc. IEC 62061)
Type 4 - SIL 3 - SILCL 3 - PL e - Cbei. 4
PFHd (EN ISO 13849)
9.63E-09
Approvals
CE; TÜV SUD; UL Listed ESPE; WEEE; Insulation class; Low voltage; China RoHs; RoHs; IP65 - IP67; UKCA
Performance Level (EN ISO 13849-1: 2015)
Type 4 - PL e
Safety functions
Integrated

Environmental conditions

Max. operating temperature
- 30 ... 55 °C
Protective covers
None

Electrical data

Max. voltage (VDC)
24 ± 20%
Response times
5.5
Safety output type
2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit, overload and polarity reversal
Safety outputs
2 fail-safe PNP (400 mA at 24 VDC)

Mechanical data

Protected height (mm)
810
Resolution (mm)
Multi-beams
Controlled height (mm)
889
Max. Range (m)
12
Restart
Built-in - User selectable automatic or manual
Total height (mm)
984

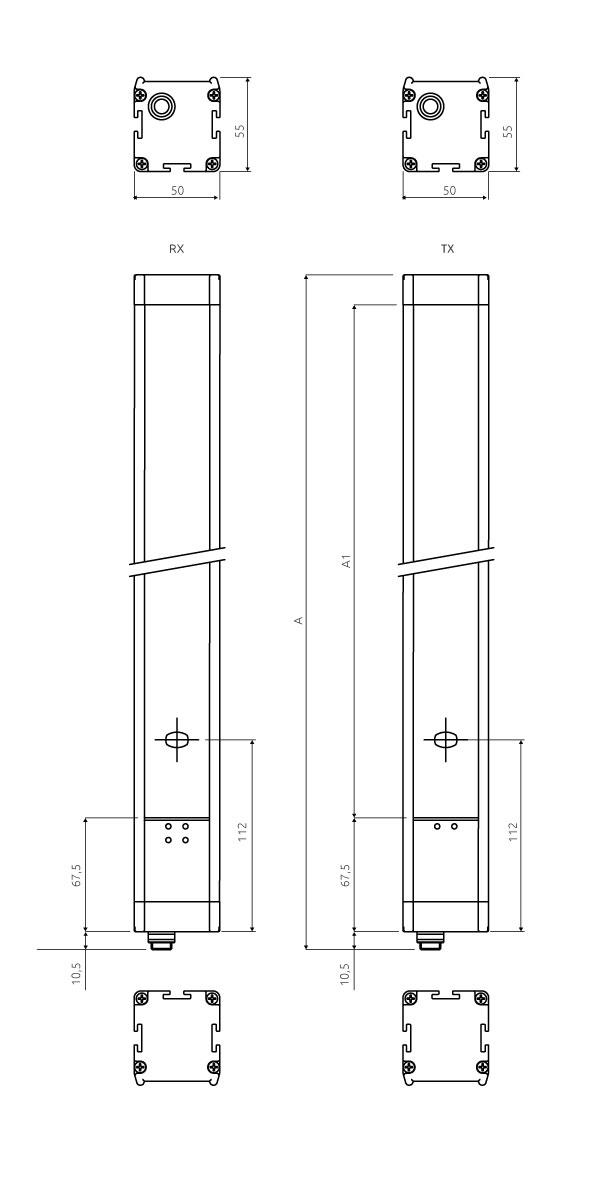

Cross-sectional dimensions (mm)
50 x 55
Mounting
Back slot, side slot with set of LL type brackets (included). SFB SG swivel brackets (optional)
Max. Length of connection cable (m)
100
Connections
M12 5-pole male connector (emitter), M12 8-pole male connector (receiver)
Packaging dimensions HxLxW (mm)
145 x 1080 x 200
Gross weight (g)
6250

Equipment

C8D10
C8D15
C8D25
C8D40
C8D5
CD10
CD15
CD20
CD25
CD5
CD50
