SAFEGATE MA L2P TRX VG
Set of muting arms, L-logic (output only), 2 parallel beams, for applications with high speed conveyors and transparent materials.

General data

Item number

SP-R-13-908-21

Type designation

SAFEGATE MA L2P TRX VG

Functional type

Set of muting arms, L-logic (output only), 2 parallel beams, for applications with high speed conveyors and transparent materials.

Muting logic

L (One way) logic with 2 crossed beams

Muting sensor field

Adjustable height and tilting

Characteristic output of the muting sensors

PNP 100 mA at 24 VDC

Muting sensors

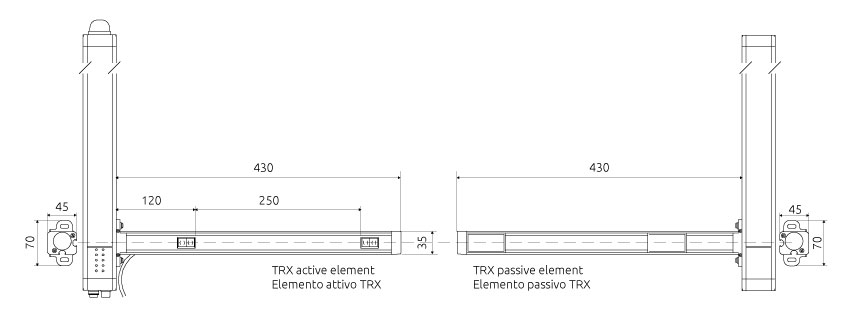

TRX Muting sensors arms with active and passive retro-reflector element. Reduced range for application with glass and transparent material. Longer Muting arms for high speed conveyors

Integrated optoelectronic sensors

2 with crossed beams

Detection

Access control

Safety data

Approvals

CE; UKCA

Environmental conditions

Max. operating temperature

- 30 ... 55 °C

Protective covers

None

Mechanical data

Max. Range (m)

Packaging dimensions HxLxW (mm)

145 x 500 x 200

Gross weight (g)

2117.56
