Quality Assurance

Our aluminum protective fence meets the requirements of the Machinery Directive 2006/42/EC, as well as the standards DIN EN ISO 12100 and DIN EN ISO 10218-2 when correctly designed. We continuously optimize and test our protective fence system using pendulum and ballistic tests.

Quality is our highest asset for your safety, to ensure this we are DIN EN ISO 9001:2015 certified. This quality management system ensures optimized processes and high customer satisfaction.

Ballistic tests

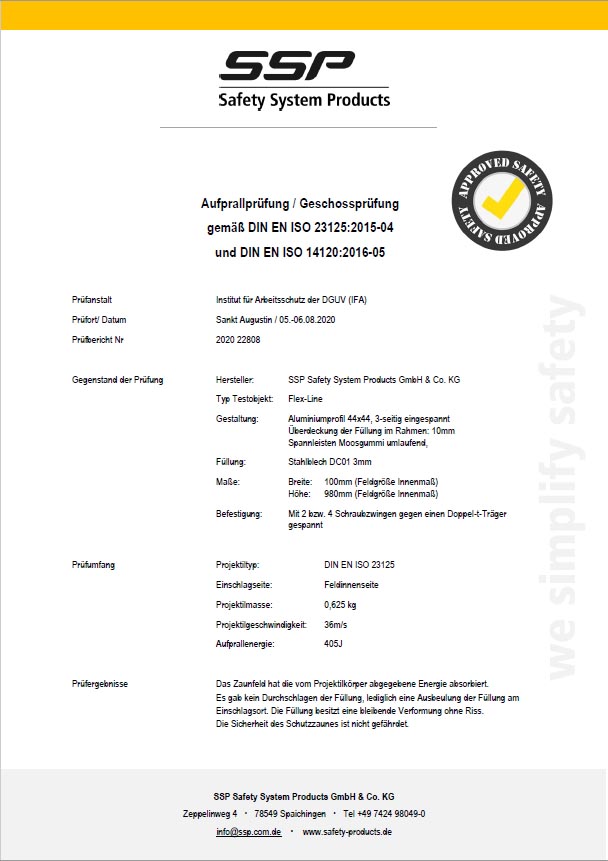

Flex-Line - 100 x 980 mm - Steel sheet DC01 3 mm - Impact force 405 J

Flex-Line - 980 x 1980 mm - Polycarbonate 5 mm - Impact force 781 J

Flex-Line - 1000 x 1000 mm - Steel sheet DC11S235 4 mm - Impact force 3240 J

Flex-Line - 1000 x 1000 mm - Steel sheet DC11S235 6 mm - Impact force 8000 J

Construction profile - 44x 44 mm - Aluminium - Impact force 383 J

Pendulum tests

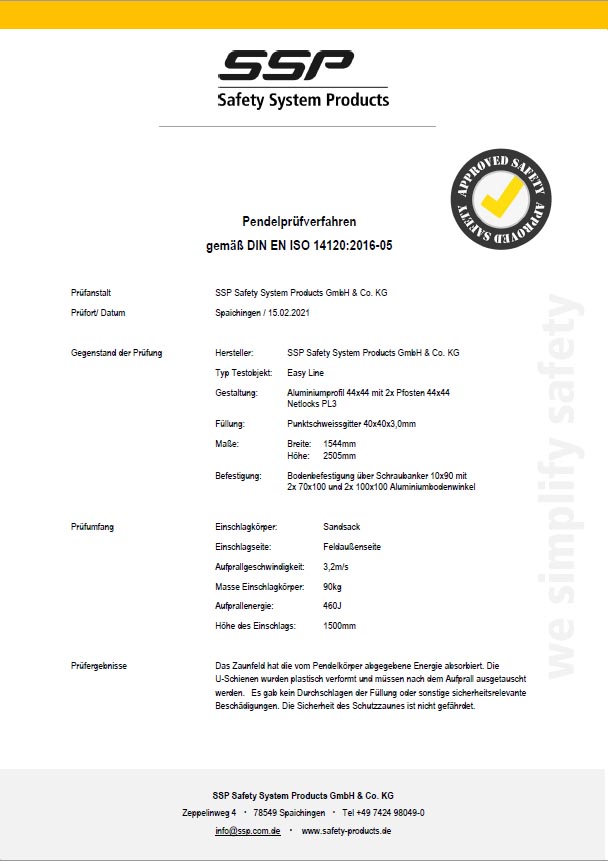

Easy-Line - 1544 x 2505 mm - Welded wire mesh 40x40x3 mm- Impact force 460 J

Flex-Line - 1318 x 2205mm - Steel sheet embossed 1 mm - Impact force 460 J

Flex-Line - 1318 x 2205 mm -Polycarbonate welding protection 3 mm - Impact force 230 J

Flex-Line - 1000 x 2005 mm - Single pane safety glass 5 mm - Impact force 115 J

Flex-Line - 1068 x 2205 mm - Aluminium compound 4 mm - Impact force 115 J

Flex-Line - 1463 x 2205 mm - Welded wire mesh 40x40x3 mm - Impact force 882 J

Flex-Line - 1544 x 2505 mm - Welded wire mesh 40x40x3 mm - Impact force 115 J

Flex-Line - 1568 x 2205 mm - Polycarbonate 5 mm - Impact force 460 J

Flex-Line Stellfüße - 1044 x 2210 mm - Welded wire mesh 40x40x3,5 mm - Impact force 460 J

Flex-Line pro - 2000 x 2200 mm - Polycarbonate 4 mm - Impact force 460 J

Hubtor - 5176 x 2200 mm - Polycarbonate 4 mm - Impact force 115 J

Hubtor - 5176 x 2200 mm - Polycarbonate 4 mm - Impact force 460 J

QR-Field - 1000 x 2205 mm - Welded wire mesh 40x40x3,5 mm - Impact force 115 J

Our customers trust our service and expertise since many years.

As a competent partner, we plan and implement individual safety fence solutions for simple as well as demanding applications. A safety system that is tailored to you and your plant, from a single source.
