XCONN Y2-M12

Your advantages



  • Reduction of the wiring effort
  • Only one cable for emergency stop, electro-sensitive protective equipment and reset button goes to the control cabinet
  • Acknowledgement function of the light curtains without external wiring
  • Plug & Safe

XCONN Y4-M12
Connection module EDI C7


Requirements for safety light curtains: If a light curtain can be accessed, it must be acknowledged via a reset button. Automatic start-up of a system is not permitted.


Betreff: XCONN Y4-M12 Connection module EDI C7


General data

Type designation
XCONN Y4-M12
Item number
SP-X-33-000-76
Functional type
Connection module EDI C7

Electrical data

Connector 1
Connector
M12 female connector
Pin numbers
8-pin
Function
Connection EDI C7
Connector 2
Connector
M12 female connector
Pin numbers
8-pin
Function
Connection EDI C7
Connector 3
Connector
M12 male connector
Pin numbers
8-pin
Function
Connection EDI C7

Electrical drawings

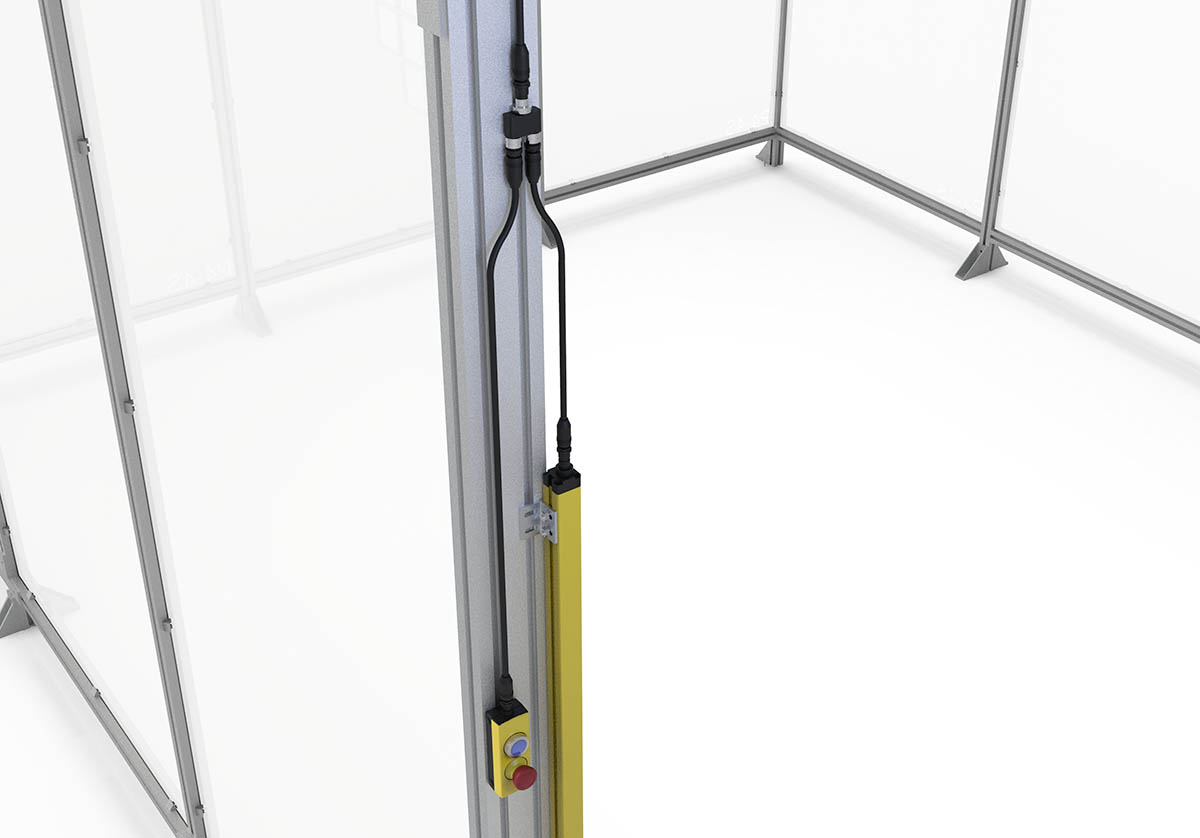

Connection example 1
Connection example 1

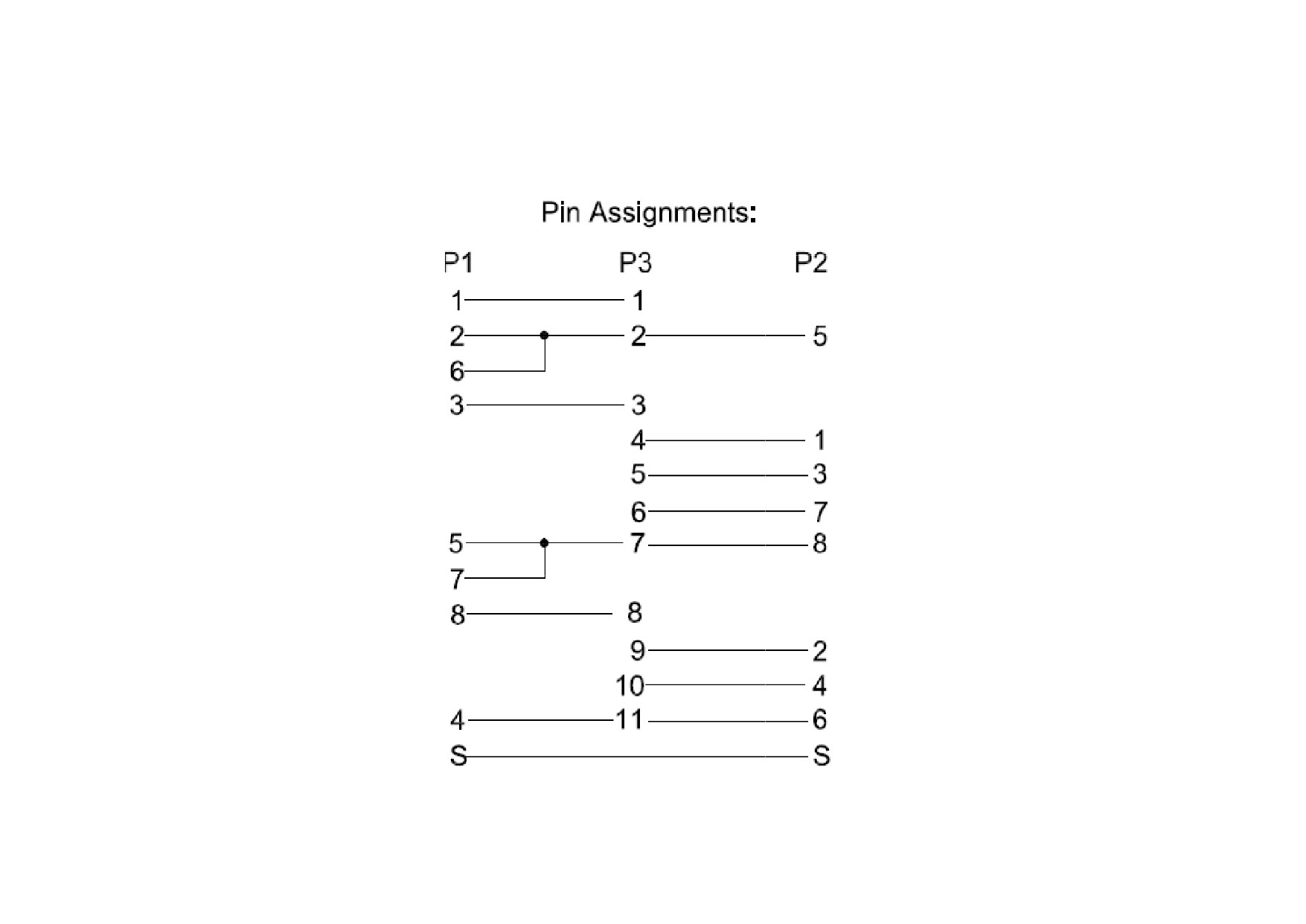

Pin assignment 1
Pin assignment 1
