End plug HOLDX R1

Downloads

End plug HOLDX R1
M12-8 pin, resistance 120 Ohm

Betreff: End plug HOLDX R1 M12-8 pin, resistance 120 Ohm

General data

Type designation
Terminating plug HOLDX R1
Item number
1027881
Item number (old)
SP-X-71-002-06
Functional type
Terminating plug/ Termination resistor

Environmental conditions

Max. storage temperature
-25...+ 70 °C
Max. operating temperature
-20...+ 65 °C

Electrical data

Design / Connections
M12 male connector
Contact material
Brass with gold-plated contacts
Max. voltage (VDC)
2,0 A

Mechanical data

Housing material
PBT

Electrical drawings

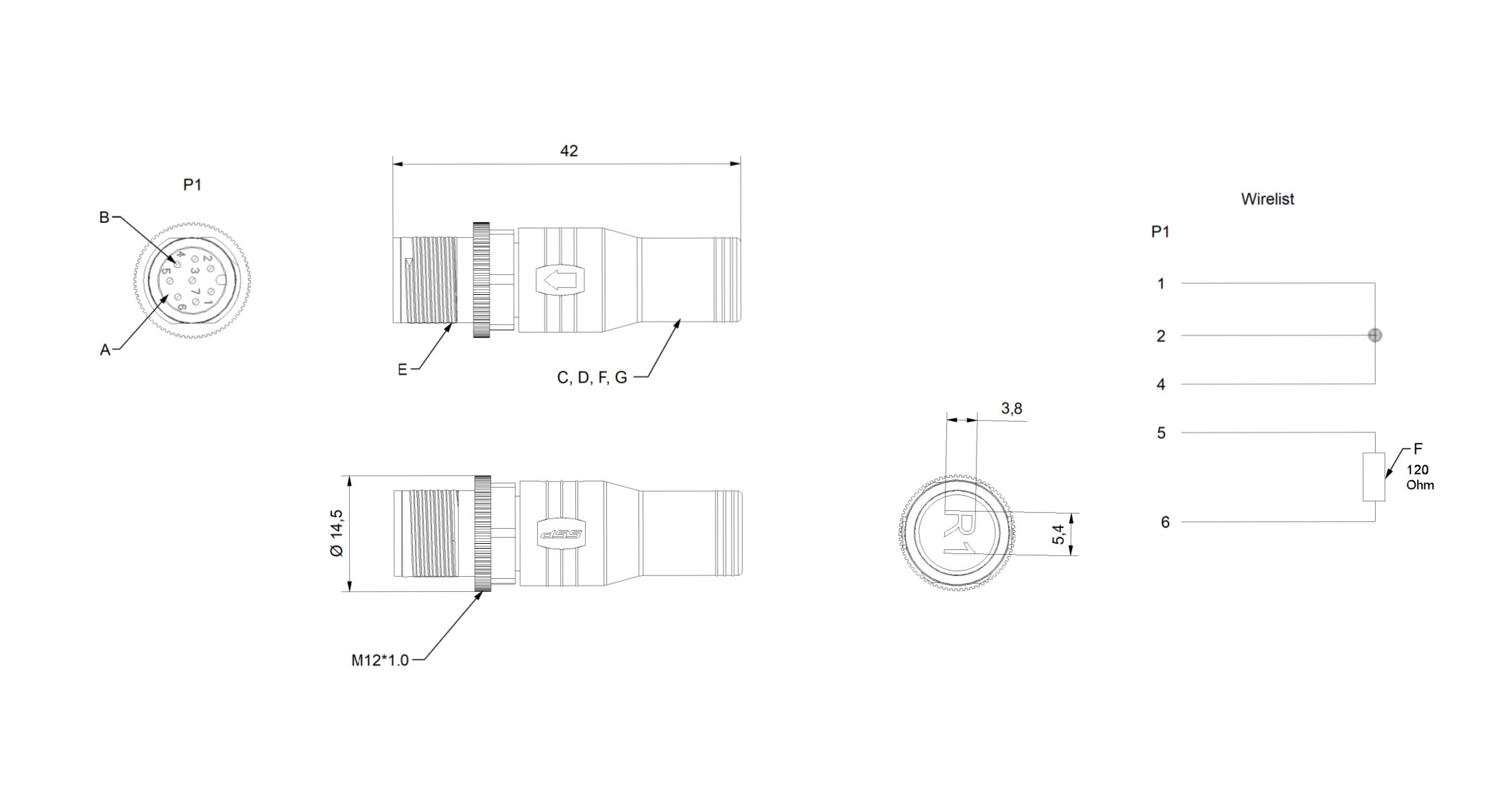

Connection example 1
Connection example 1

Drawings

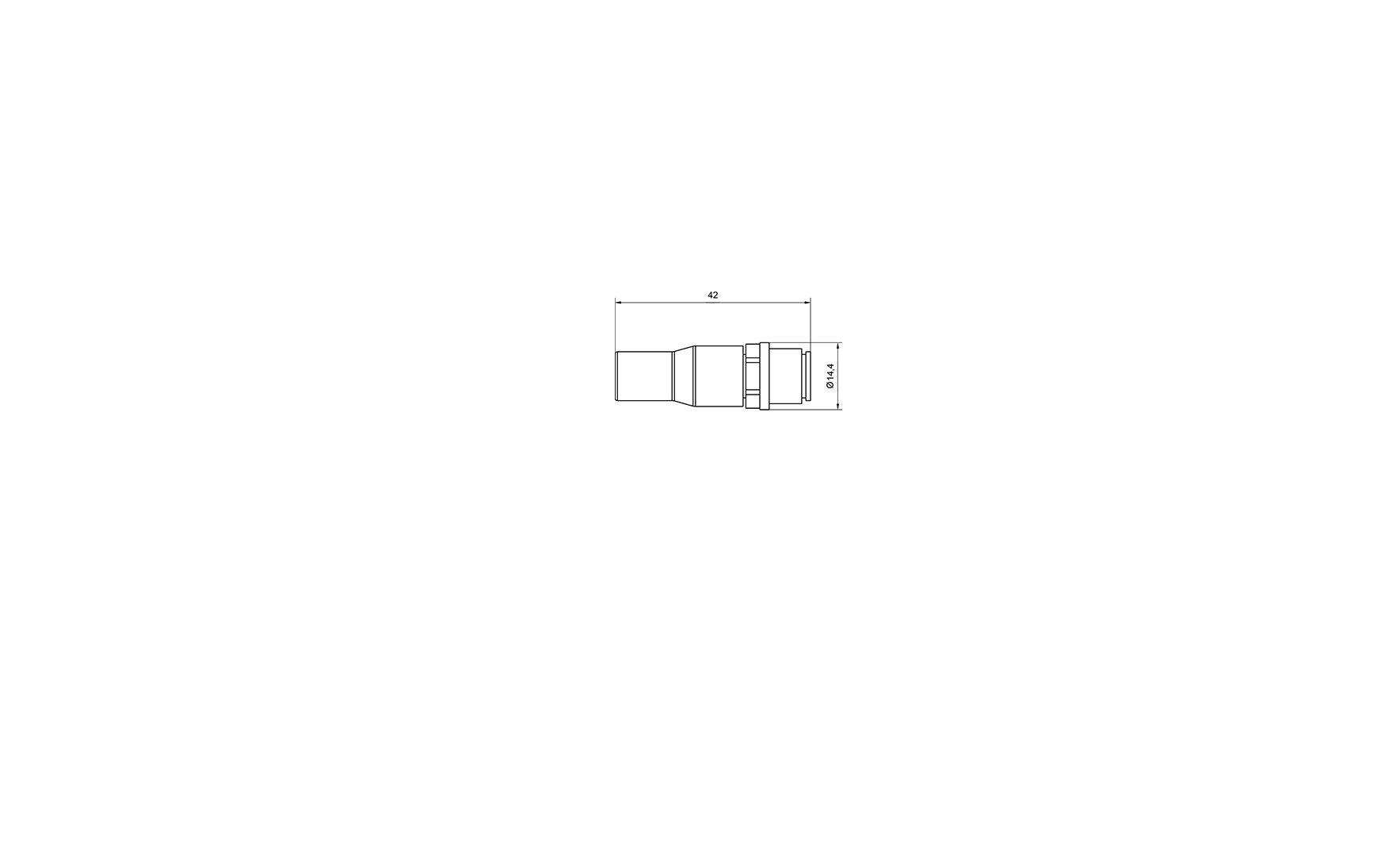

Dimensions
Dimensions
