THM-RX-SMDU-QM

Your advantages

  • Robust but slimline metal housing
  • Protection class IP65
  • PLd according to EN ISO 13849-1
  • Modular and individual configuration
  • M12-12 pin plug connection
  • Safety locking for protection of personnel

THM-RX-SMDU-QM
Safety switch with locking function and emergency release

tGard offers you innovative solutions for combining safety functions and operating elements at access points to dangerous machines and plants. The compact and extremely robust metal housing provides you with the required stability and durability.

tGard can be adapted to your requirements due to its modular design. Depending on the safety requirements at your plant, you can select and combine various different safety functions such as position monitoring, locking or key transfer systems. tGard combines safety and operation. Alongside the safety functions, you can also select a diverse range of operating elements. Whether indicator lights for status reports, call and release buttons, emergency stop buttons or selection switches, you decide what you require.


Betreff: THM-RX-SMDU-QM Safety switch with locking function and emergency release


General data

Functional type
Safety switch with guard locking and escape release
Item number
ITM-00412093
- Colour
dark gray
Type designation
THM-RX-SMDU-QM
Service life TM (EN ISO 13849-1)
20 Years
Utilisation category for signal contacts
DC13: Le=0.5 A, Ue=24 V DC
Emergency release
Yes, 60 mm

Safety data

Category (EN ISO 13849-1:2015)
3
SIL (acc. IEC 62061)
2
Approvals
EN13849-1:2008 EN13849-2:2012 EN62061:2005 EN14119:2013

Environmental conditions

Max. storage temperature
0 ... +60 °C
Max. operating temperature
0 ... +40 °C

Electrical data

- Solenoid control
24V DC

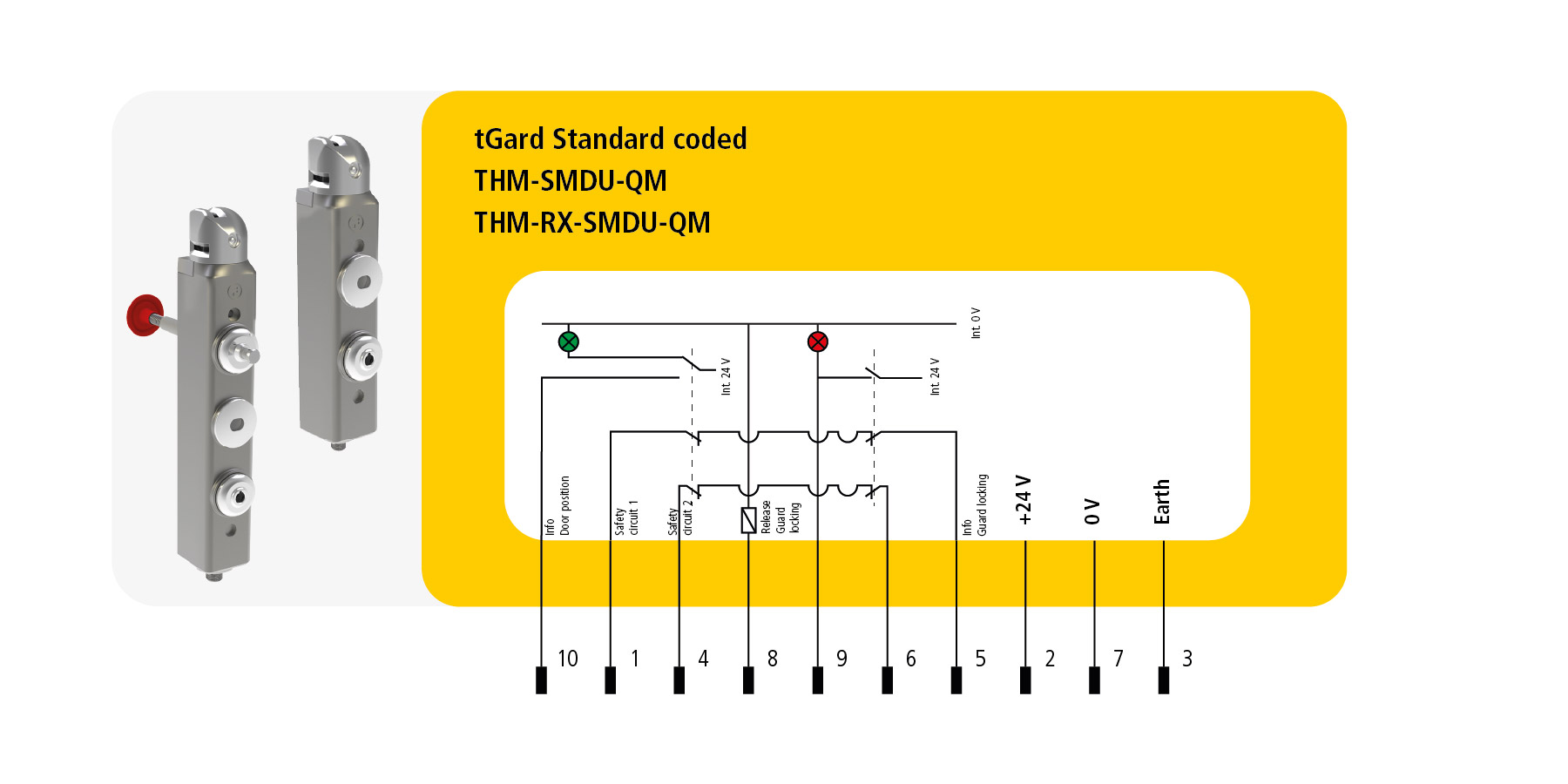

Connection type
M12 12-pin male connector
Safety locking for protection of personnel
Yes
Auxiliary mechanical release
Yes
Utilisation category for safety contacts
DC13: Le=0,5 A, Ue=24 V DC AC15: Le=1 A, Ue=24 V AC

Mechanical data

Mechanical service life
1.000.000 switching cycles
Actuating force
5 to 10 NM
Width
40 mm
Locking force Fmax
2500 N
Fixing force
5 bis 10 N
UL and CSA approval
Yes

Drawings

Dimensions
Dimensions

Equipment

TAF
TAH
TAS
TEH
