SAFEREADY SFRD4 604 P
Hand-detection type 4 safety light curtain | Plus version

Betreff: SAFEREADY SFRD4 604 P Hand-detection type 4 safety light curtain | Plus version

General data

Item number

1047996

Item number (old)

SP-R-10-702-23

Type designation

SAFEREADY SFRD4 604 P

Functional type

Hand-detection type 4 safety light curtain | Plus version

Number of beams

Detection

Hand

Scanning function

Fest, variabel oder gemischt

Programmability

✔

Safety data

MTTFd (ISO 13849-1) years

Degree of protection

IP 65 - IP 67

Safety level (SIL / PL)

Typ 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Kat. 4

Safety functions

Integriert

Communication technology

LEDs and a top lamp for status and diagnostics of the light curtain

Environmental conditions

Max. operating temperature

from -30 to 55 °C

Max. storage temperature

-30…70 °C

Relative humidity

50% @ 70 °C / 90% @ 20 °C

Electrical data

Function

Transmitter / Receiver

Safety output type

2 fail-safe PNP relays (400 mA at 24 VDC), self-testing with short-circuit, overload and reverse polarity protection

Safety outputs

2 OSSD PNP (400 mA at 24 VDC)

Max. voltage (VDC)

24 ± 20%

Mechanical data

Beam spacing (mm)

Total height (mm)

618

Protected height (mm)

610

Controlled height (mm)

600

Max. Range (m)

Restart

Manuell oder Automatisch schließbar

Resolution (mm)

Connections

Pigtail 5-pin M12 connector (transmitter), 8-pin M12 connector (receiver)

Max. Length of connection cable (m)

100

Mounting

Rear slot with mounting kit

Cross-sectional dimensions (mm)

28 x 33

Drawings

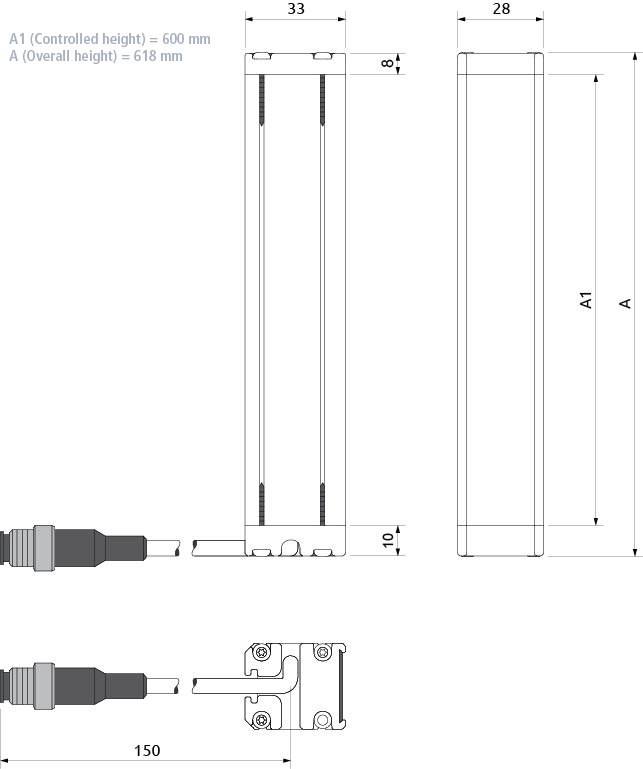

Dimensions
