SAFEREADY SFRD4 1202 X
Hand detection type 4 safety light curtain

Betreff: SAFEREADY SFRD4 1202 X Hand detection type 4 safety light curtain

General data

Item number

1047882

Item number (old)

SP-R-10-700-87

Type designation

SAFEREADY SFRD4 1202 X

Functional type

Hand detection type 4 safety light curtain

Number of beams

120

Detection

Hand

Scanning function

Hand

Safety data

MTTFd (ISO 13849-1) years

Degree of protection

IP 65 - IP 67

Safety level (SIL / PL)

Typ 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Kat. 4

Safety functions

Integrated

Communication technology

LEDs and a top lamp for status and diagnostics of the light curtain

Environmental conditions

Max. operating temperature

from -30 to 55 °C

Max. storage temperature

-30…70 °C

Relative humidity

50% @ 70 °C / 90% @ 20 °C

Electrical data

Function

Transmitter / Receiver

Safety output type

2 fail-safe PNP relays (400 mA at 24 VDC), self-testing with short-circuit, overload and reverse polarity protection

Safety outputs

2 OSSD PNP (400 mA at 24 VDC)

Max. voltage (VDC)

24 ± 20%

Mechanical data

Beam spacing (mm)

Total height (mm)

1218

Protected height (mm)

1210

Controlled height (mm)

1200

Max. Range (m)

Restart

Can be closed manually or automatically

Resolution (mm)

Connections

Pigtail 5-pin M12 connector (transmitter), 8-pin M12 connector (receiver)

Max. Length of connection cable (m)

100

Mounting

Rear slot with mounting kit

Cross-sectional dimensions (mm)

28 x 33

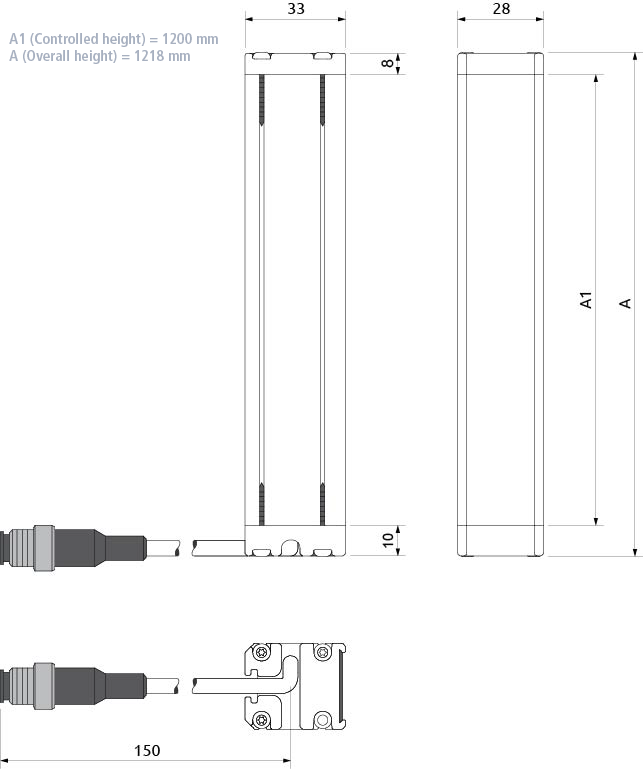

Drawings
