C8D95
M12-connection cable, 90°, 8-pin, 5 m

M12 female connector, 8-pin, 90°, open end - 20 m

Betreff: C8D95 M12-connection cable, 90°, 8-pin, 5 m

General data

Type designation

C8D95

Item number

1021399

Item number (old)

SP-R-13-309-83

Functional type

connection cable

Codierung

A-coded

Cable length

5 m

Suitable for

HOLDX R1

✔

Master HOLDX R2

✔

SAFIX 3

✔

ATOM

✔

EOS4 X receiver

✔

EDI B7B

✔

EDI C7

✔

EDI E1

✔

ZEUS

✔

Safety Simplifier

✔

Simplifier XCONN

✔

XCONN

✔

Safety data

Approvals

UL2464

IP protection

IP67

Environmental conditions

Max. operating temperature

-10~80 °C

Max. storage temperature

-10~80 °C

Electrical data

Pin assignment according DIN 47100

White

Brown

Green

Yellow

Gray

Pink

Blue

Red

Wire colors

brown

Shielding

none

Mechanical data

Connection X1

M12

Connector type X1

female connector

Connecting direction X1

90°

Threaded ring material X1

Nickel-plated brass

Number of pins X1

Connection X2

open end

Cable length L1

5000 mm

Cable sheath material K1

PVC

Colour of cable outer sheath K1

black

Conductor cross-section K1

0,34 mm²

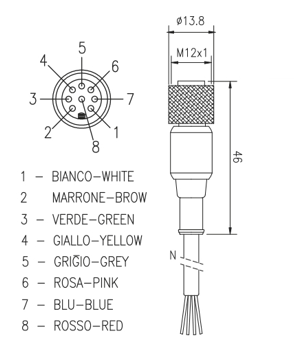

Electrical drawings
