M23-C19101-G
M23-female connector, 19 pin, 10 m


M23-cable, 19 Pins, 10m, 3 x 0,75mm² + 16 x 0,34mm²



Betreff: M23-C19101-G M23-female connector, 19 pin, 10 m


General data

Type designation
M23-C19201-G

Environmental conditions

Max. operating temperature
-20 ... +80 °C

Mechanical data

Housing material X1
PA66
Cable length L1
10000 mm
Cable sheath material K1
PVC
Colour of cable outer sheath K1
Black
Conductor cross-section K1
0,25 mm²
Conductor material K1
Tinned copper
Conductor ínsulation K1
PVC
Drag chain capability K1
No
Cable diameter K1
9.2 mm
Conductor cross-section AWG K1
18AWG*3C+22AWG*16C

Electrical drawings

Pin assignment 1
Pin assignment 1

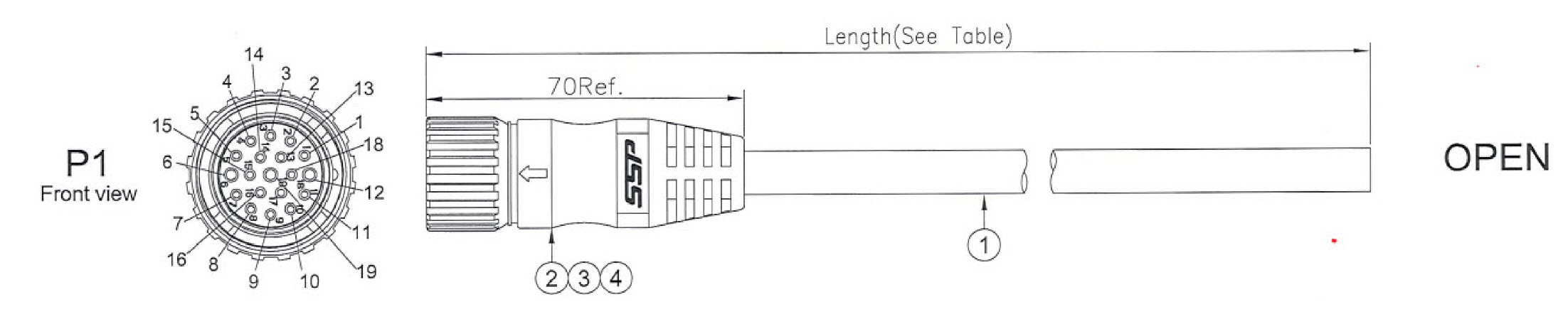

Drawings

Dimensions
Dimensions
