M12-C12101-G-A
M12-connection cable, 12-pin, 10 m

M12-female connector, 12-pin, open end - 10 m

Betreff: M12-C12101-G-A M12-connection cable, 12-pin, 10 m

General data

Type designation

M12-C12101-G

Item number

1022363

Item number (old)

SP-X-33-000-21-A

Functional type

connection cable

Codierung

A-coded

Cable length

10 m

Suitable for

SAFEGATE receiver

✔

Safety Simplifier

✔

Safety data

Approvals

UL2464

Connector approval X1

IEC61076-2-101

IP protection

IP67

Environmental conditions

Max. operating temperature

-10~80 °C

Max. storage temperature

-10~80 °C

Electrical data

Pin assignment according DIN 47100

Wire colors

brown

Connector 1

Shielding

none

Mechanical data

Connection X1

M12

Connector type X1

female connector

Connecting direction X1

straight

Threaded ring material X1

Nickel-plated brass

Number of pins X1

Housing material X1

TPU+30%GF

Connection X2

open end

Cable length L1

10000 mm

Cable sheath material K1

PVC

Colour of cable outer sheath K1

Black

Conductor cross-section K1

0,25 mm² mm²

Conductor material K1

Tinned copper

Conductor ínsulation K1

PVC

Drag chain capability K1

Cable diameter K1

6,2mm mm

Conductor cross-section AWG K1

24AWG

Electrical drawings

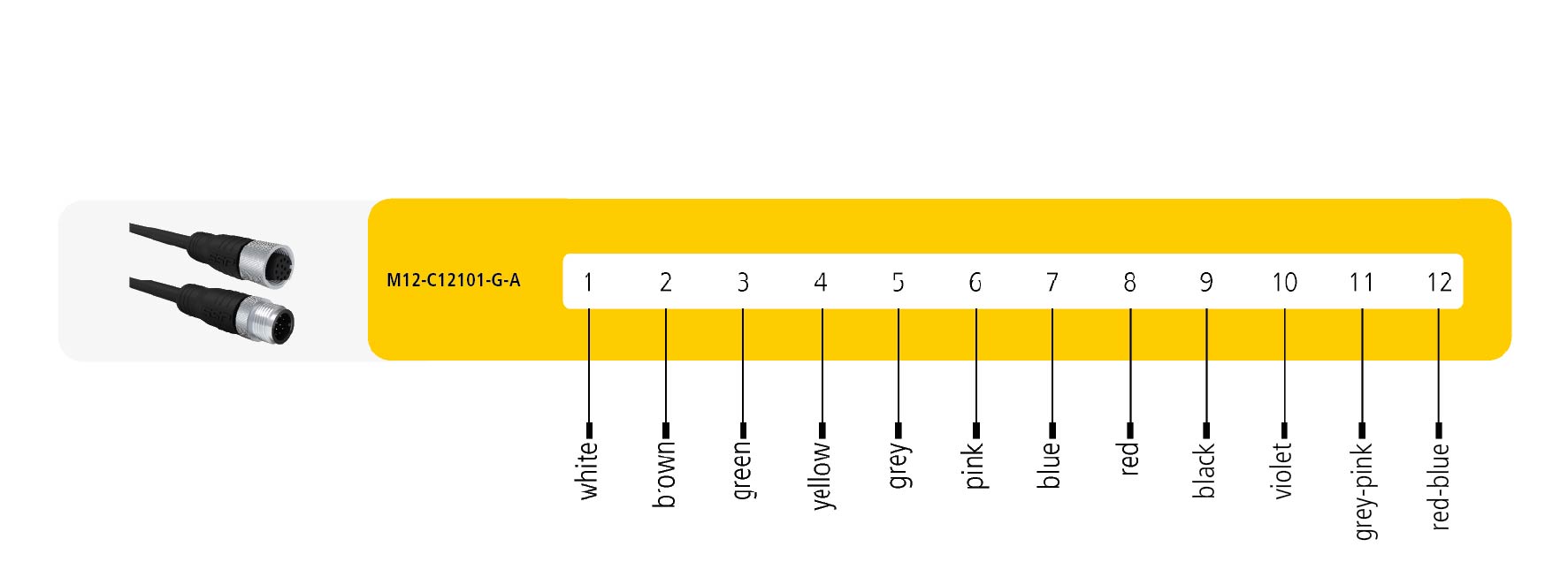

Pin assignment 1
