SAFEREADY SFRD4 601 A
Finger recognition type 4 safety light curtain

Betreff: SAFEREADY SFRD4 601 A Finger recognition type 4 safety light curtain

General data

Item number
1047778
Item number (old)
SP-R-10-700-02
Type designation
SAFEREADY SFRD4 601 A
Functional type
Finger recognition type 4 safety light curtain
Number of beams
60
Detection
finger

Safety data

MTTFd (ISO 13849-1) years
20
Degree of protection
IP 65 - IP 67
Safety level (SIL / PL)
Typ 4 - SIL 3 - Max SIL 3 - SL 2 - PL e - Kat. 4
Safety functions
With an external module
Communication technology
LEDs and a top lamp for status and diagnostics of the light curtain

Environmental conditions

Max. operating temperature
from -30 to 55 °C
Max. storage temperature
-30…70 °C
Relative humidity
50% @ 70 °C / 90% @ 20 °C

Electrical data

Function
Transmitter / Receiver
Safety output type
2 fail-safe PNP relays (400 mA at 24 VDC), self-testing with short-circuit, overload and reverse polarity protection
Safety outputs
2 OSSD PNP (400 mA at 24 VDC)
Max. voltage (VDC)
24 ± 20%

Mechanical data

Beam spacing (mm)
10
Total height (mm)
615
Protected height (mm)
600
Controlled height (mm)
597
Max. Range (m)
8
Restart
Automatically
Resolution (mm)
14
Connections
Pigtail 5-pin M12 connector (transmitter), 8-pin M12 connector (receiver)
Max. Length of connection cable (m)
100
Mounting
Rear slot with mounting kit
Cross-sectional dimensions (mm)
28 x 33

Drawings

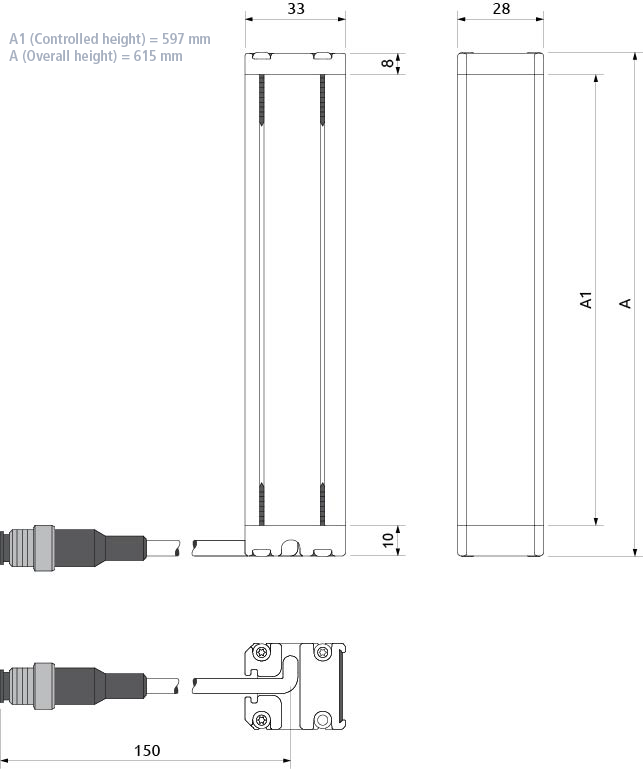

Dimensions
Dimensions
