spare display for RL-24I-PI Phase indicator, clockwise

Your advantages

• Enhance Isolation Procedures: Quick method to check isolation to enhance LOTO procedures, reducing the risk of electrical hazards.

• Maximal safety: Electrical separation between the DIN rail unit and the door mounted display, hazardous voltages remain within the cabinet.

• Live Indication Status & Phase Indication: Direct display of voltage status and rotating field direction, minimises testing effort.

• Simple Installation & LED Display: Compact design, low-maintenance, with bright LEDs for clear status display.

• Worldwide certifications: Compliant up to OVC IV for universal use

Downloads

RL-24I-PI-DCC
spare display for RL-24I-PI Phase indicator, clockwise

The RL-24i Phase Indicator provides a simple solution for monitoring three-phase power supplies and gives a clear indication of the correct phase sequence. He can monitor voltages up to 1000 VAC and the door-mounted display informs users of each phase and indicates any sequence faults. There are two versions: for a clockwise or counterclockwise phase sequence. For added safety, there is electrical isolation between the DIN rail and the door-mounted display. A low voltage of 3.8 volts DC to the door unit ensures maximum operator protection.

The indicator requires no continuous maintenance and is designed for use in demanding environments. Its housing made of halogen-free, insulating V0 material is robust and strong. With low energy consumption, the RL-24i enables continuous monitoring even after phase separation while maintaining the protection class of the switch cabinet.

Betreff: RL-24I-PI-DCC spare display for RL-24I-PI Phase indicator, clockwise

General data

Type designation

RL-24I-PI-DCC

Interference immunity

To EN 61326-1

Item number

1044833

Item number (old)

Mounting

Standard TS35 DIN rail according to EN50022

Safety data

Approvals

EN 61326-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1, NEMA 4X, IEC 60204, RoHS 2011/65/EU & 2015/863

Certifications

CE, MET, RCM, UKCA

Environmental conditions

Ambient temperature

-35°C to 55 °C

Altitude

max. 5.000 m

Protection class

IP 66

Electrical data

Rated operating voltage Ue

24 VAC bis 1000 V -10%/+10% V

Frequency range

50 Hz/60 Hz

Input current, max (rms)

20mA

Power supply

Power supply via input voltage, no additional power supply required.

Power consuption

20 W max.

Protection of the operating voltage

The REMLIVE RL-24i has an integrated 500 mA fuse and internal overvoltage protection.

UL Rating of external fuse:

The REMLIVE RL-24i does not require external fuse protection for most AC voltage applications.

Insulation resistance

> 20 Mohm Phase to Earth

Rated impulse withstand voltage

Line - Earth

8 kV

Line - Neutral

2,4 kV

Line 2.4 kV

2,4 kV

Overvoltage category

IV (690 V); III (1000 V)

Terminal blocks

Input wiring

1,0 … 2,5 mm² with insulation rated for the voltage of the system being monitored.

Drawings

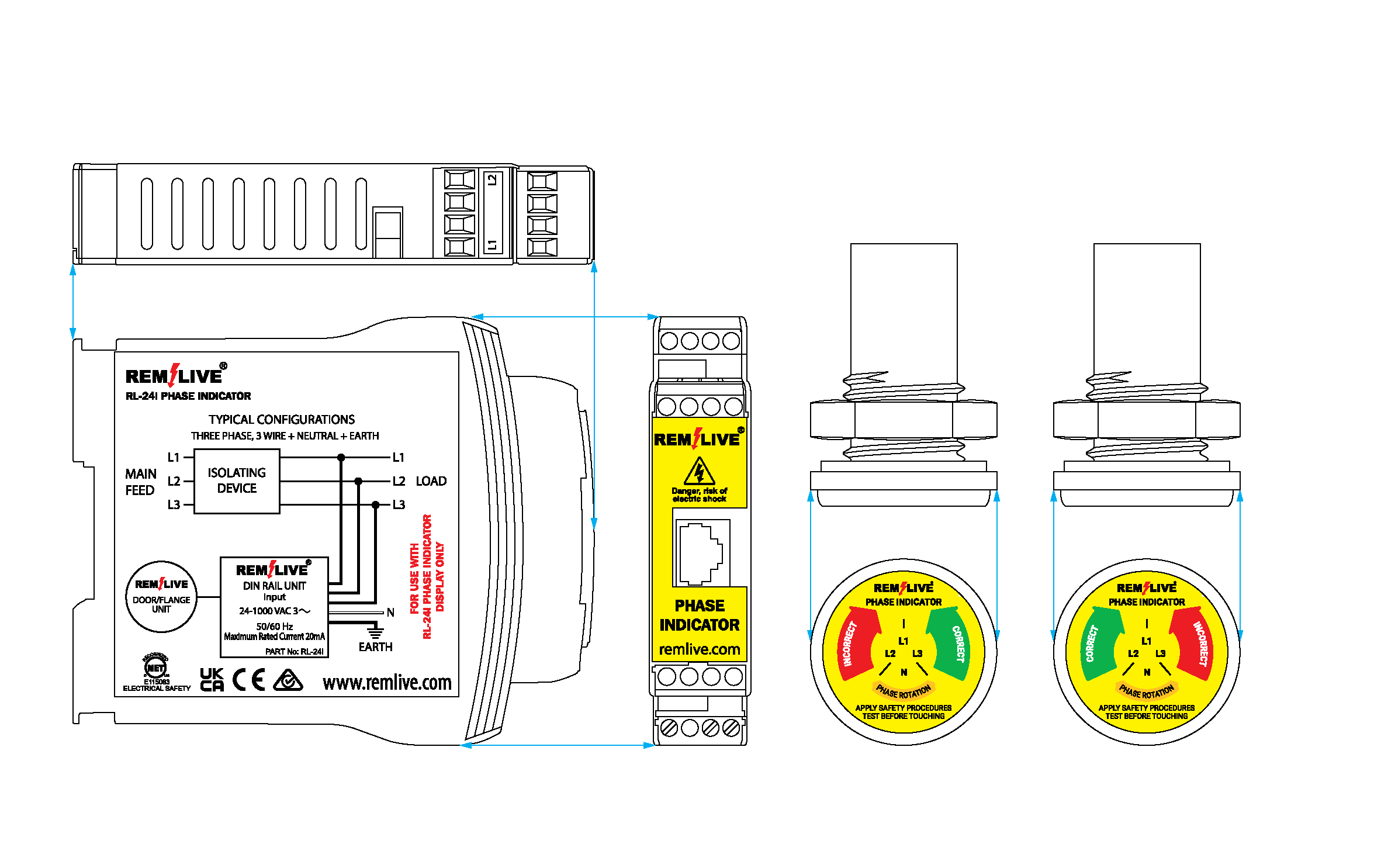

Dimensions
