REM-Live, 24i Isolator check to monitor voltage

Your advantages

• Enhance Isolation Procedures: Quick method to check isolation to enhance LOTO procedures, reducing the risk of electrical hazards.

• Maximal safety: Electrical separation between the DIN rail unit and the door mounted display, hazardous voltages remain within the cabinet.

• Live Indication Status & Phase Indication: Direct display of voltage status and rotating field direction, minimises testing effort.

• Simple Installation & LED Display: Compact design, low-maintenance, with bright LEDs for clear status display.

• Worldwide certifications: Compliant up to OVC IV for universal use

Downloads

RL-24I-IC-23
REM-Live, 24i Isolator check to monitor voltage

The RL-24i Isolator Check provides reliable monitoring and confirmation of voltages during or after the disconnection of equipment. It can monitor voltages up to 690 V AC for CAT-IV configurations and provides the user with a quick and easy method of visualising insulation during lockout/tagout procedures via a display. For operator safety, there is a low sliding current to the door unit of 3.8 V.

The maintenance-free device is designed for use in demanding environments. Its housing made of halogen-free, insulating V0 material is robust and durable. The RL-24i is maintenance-free and designed to IP66 standards, ensuring that the switch cabinet remains reliably protected against ingress.


Betreff: RL-24I-IC-23 REM-Live, 24i Isolator check to monitor voltage

General data

Item number
1044830
Item number (old)
Type designation
RL-24I-IC-23
Interference immunity
To EN 61326-1
Mounting
Standard TS35 DIN rail according to EN50022

Safety data

Approvals
EN 61326-1, EN 61010-1, UL 61010-1, CSA C22.2 No. 61010-1, NEMA 4X, IEC 60204, RoHS 2011/65/EU & 2015/863
Certifications
CE, MET, RCM, UKCA

Environmental conditions

Ambient temperature
-35°C to 55 °C
Altitude
max. 5.000 m
Protection class
IP 66

Electrical data

Rated operating voltage Ue
24 VAC bis 1000 V -10%/+10% V
Frequency range
50 Hz/60 Hz
Input current, max (rms)
20mA
Power supply
Power supply via input voltage, no additional power supply required.
Power consuption
20 W max.
Protection of the operating voltage
The REMLIVE RL-24i has an integrated 500 mA fuse and internal overvoltage protection.
UL Rating of external fuse:
The REMLIVE RL-24i does not require external fuse protection for most AC voltage applications.
Insulation resistance
> 20 Mohm Phase to Earth
Rated impulse withstand voltage
Line - Earth
8 kV
Line - Neutral
2,4 kV
Line 2.4 kV
2,4 kV
Overvoltage category
IV (690 V); III (1000 V)
Terminal blocks
Input wiring
1,0 … 2,5 mm² with insulation rated for the voltage of the system being monitored.

Mechanical data

Module dimensions
Width
22,5 mm
Length
122 mm
Height
100 mm

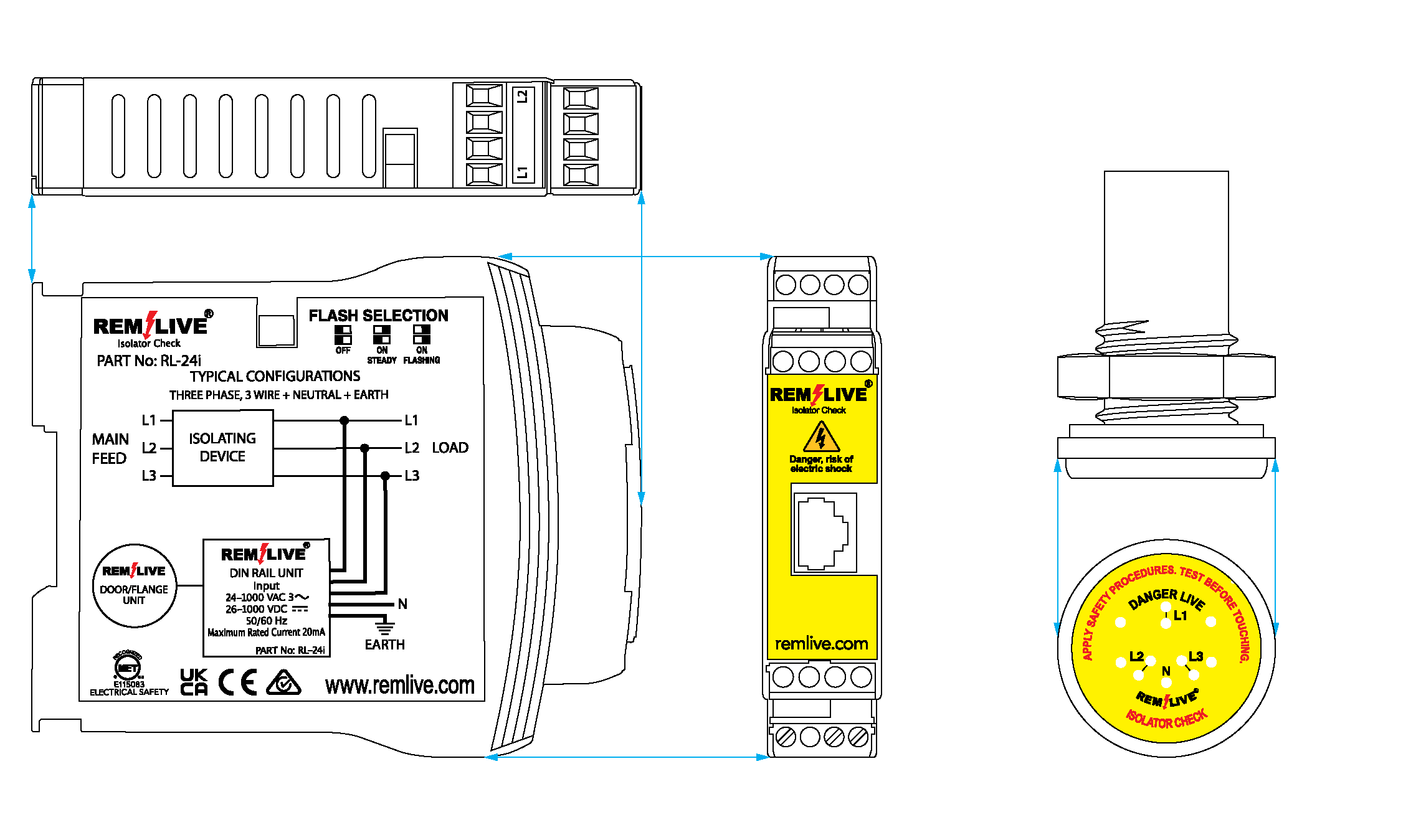

Drawings

Dimensions
Dimensions

Equipment

RL-24I-IC-D
