SB-H0S-EA-IA-IA-P1-P1-Q1A-Q2A-Q3E-Q4A-W10

Downloads

SB-H0S-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10
Simplifier BOX 253

  • SB-H0S: Simplifier Box
  • Lower housing: Color anthracite, no openin for connectors on the back
  • Upper housing: Color gray, possible integration of three control points
  • EA: Emergency stop button, 2 x NC
  • IA: Illuminated button, 1x NO (5 x button caps enclosed)
  • IA: Illuminated button, 1x NO (5 x button caps enclosed)
  • P1: Taster, 1x NO (6 x Tasterkappen beigelegt)
  • P1: Taster, 1x NO (6 x Tasterkappen beigelegt)
  • Q1A0: Connector at the bottom left with cover
  • Q2A0: Connector on top left with cover
  • Q3C0: Anschluss at the bottom right with  M12 male connector 5-pin
  • Q4A0: Connector on top right with cover
  • W10: already prewired

Betreff: SB-H0S-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10 Simplifier BOX 253

General data

Item number
SP-X-87-000-29
Function type
Emergency- Stop- Button
Type designation
SB-H0S-EA-IA-IA-P1-P1-Q1A0-Q2A0-Q3E0-Q4A0-W10
Type designation
EA
Button position 1
Function type
Illuminated Button
Type designation
IA
Function type
Illuminated Button
Type designation
P1
P1
Connection
- Position 1
Q1A0- Connection bottom left with cover
- Position 2
Q2A0 - Connection top left with cover
- Position 3
Q3E0- Bottom right male connector M12 12-pin
- Position 4
Q4A0- Anschluss top right with cover

Mechanical data

Installation opening of buttons
22,5 mm
Width
42 mm
Length
253 mm
Dimensions
Height
44 mm

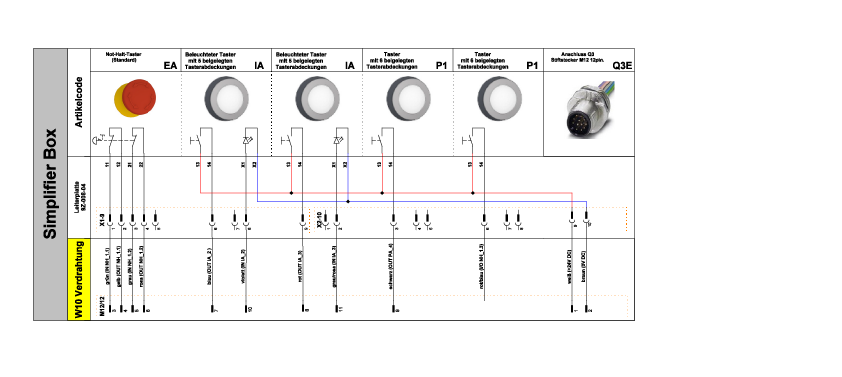

Electrical drawings

Connection example 1
Connection example 1

Equipment

Button cap set for illuminated buttons
Button cap sets for unlit buttons
Inscription label set ZB1
Inscription label set ZB2
Inscription label set ZB3
Installation wrench
Liftingtool for button and light caps
Mounting plate big
Mountingplate small
Screw with seal
Signal light caps set for signal lights
Simplifier ZHMS
Simplifier ZHS
